Product Model
ms4n-em1-1/8-s-z
Selling Points

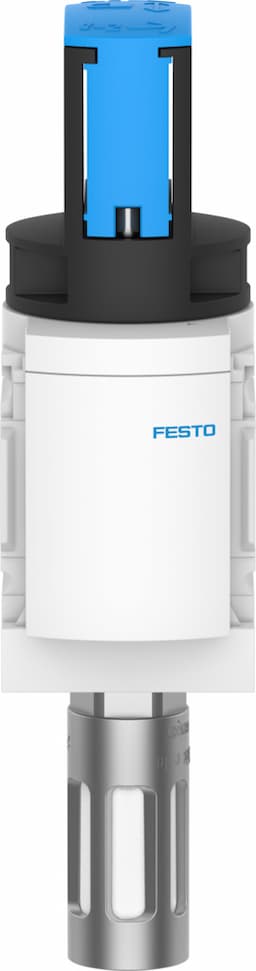

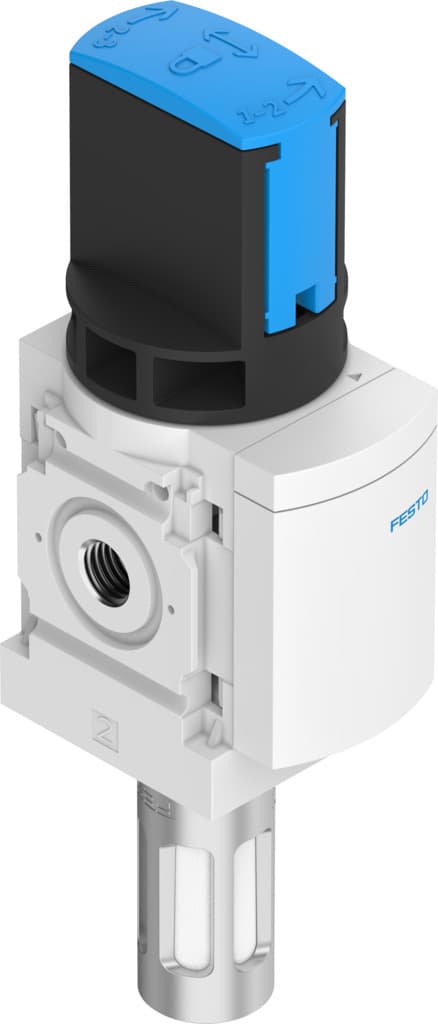

- 1The Festo MS4N-EM1-1/8-S-Z is a 3/2-way manually-actuated on-off valve with a silencer, ensuring quiet operation and precise control in various industrial applications.
- 2This pneumatic valve features non-reversing flow direction from right to left, making it ideal for pressurizing and de-pressurizing systems without backflow.
- 3The MS4N-EM1-1/8-S-Z is part of Festo's extensive range of pneumatic components, offering standardized dimensions and mounting interfaces for easy integration into industrial automation systems.
- 4With its manual actuation, the MS4N-EM1-1/8-S-Z provides a reliable and cost-effective solution for applications requiring precise control without the need for complex electrical connections.
- 5Festo's commitment to quality is evident in the 2-year warranty offered on the MS4N-EM1-1/8-S-Z, ensuring long-term reliability and performance in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Rotary gate valve | Actuation type | Manual |
Exhaust air function | Without flow control option | Type of control | Direct |
Symbol | 00991670 | Valve function | 3/2, bistable |
Operating pressure | 0bar 14bar | C value | 4.6l/sbar |
b-value | 0.51 | Standard nominal flow rate | 1200l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 210g |
Pneumatic connection 1 | 1/8 NPT | Pneumatic connection 2 | 1/8 NPT |
Pneumatic connection 3 | Not ducted | Seals material | TPE-U(PU) |
Housing material | Die-cast aluminum | Manufacturer ID | 541286 |
Specifications may be subject to change without notice
