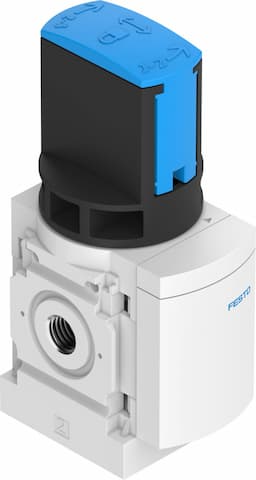

Festo MS4N-EM1-1/8-Z: Reliable On/Off Valve for Pneumatic Systems

Selling Points

1The Festo MS4N-EM1-1/8-Z is a reliable on/off valve designed for pneumatic systems, ensuring precise control and efficient operation.
2This valve features a 14-bar operating pressure and is compatible with 1/8NPT connections, making it versatile for various industrial applications.
3Equipped with a silencer, the MS4N-EM1-1/8-Z reduces noise levels, providing a quieter operation environment.
4The valve is part of the MS series from Festo, known for its high-quality components and wide range of functions, ensuring optimal performance in compressed air systems.
5With a service-life value of 0.025 million cycles, the MS4N-EM1-1/8-Z is a well-tried component for safety-related applications, adhering to ISO 13849-1 standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Structural design	Rotary gate valve	Actuation type	Manual
Exhaust air function	Without flow control option	Type of control	Direct
Symbol	00991670	Valve function	3/2, bistable
Operating pressure	0bar 14bar	C value	4.6l/sbar
b-value	0.51	Standard nominal flow rate	1200l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	Note on materials	RoHS-compliant
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Temperature of medium	-10°C 60°C
Ambient temperature	-10°C 60°C	For use in the food industry	See supplementary material information
Type of mounting	Optionally: Line installation With accessories	Mounting position	Any
Flow direction	Non-reversible	Product weight	190g
Pneumatic connection 1	1/8 NPT	Pneumatic connection 2	1/8 NPT
Pneumatic connection 3	1/4 NPT	Seals material	TPE-U(PU)
Housing material	Die-cast aluminum	Manufacturer ID	541287

Specifications may be subject to change without notice
