Product Model
ms4n-frm-frz
Selling Points

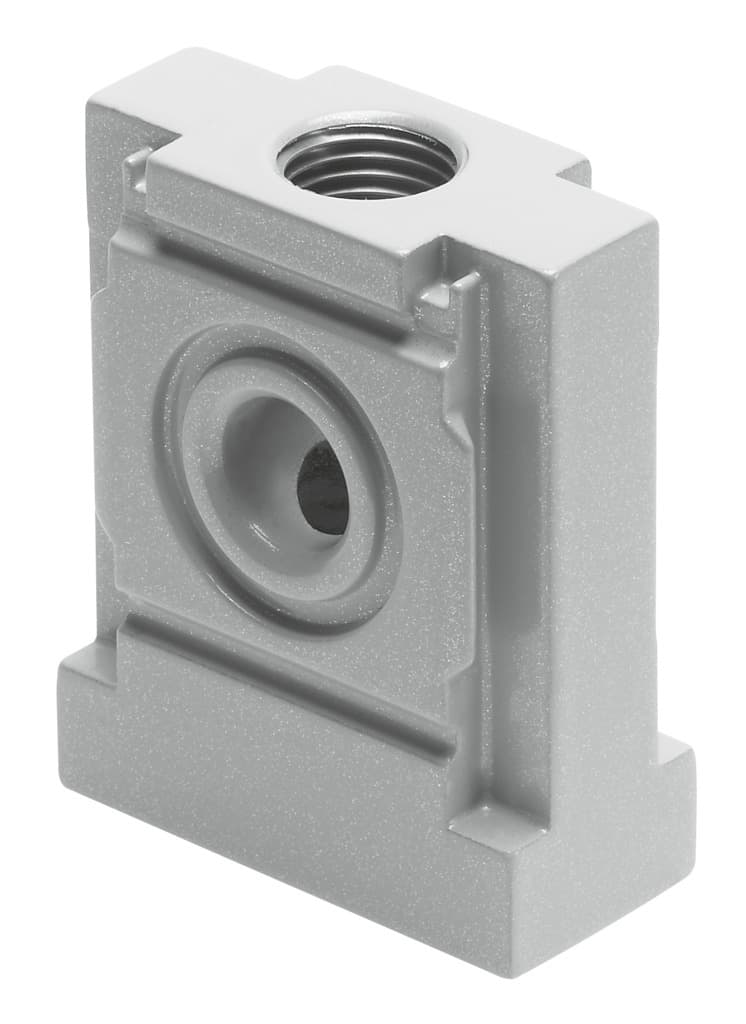

- 1The Festo MS4N-FRM-FRZ distributor block is designed as a branching module, allowing for the creation of separate pressure or air quality branches in pneumatic systems.
- 2This product features optional mounting positions, providing flexibility in its installation within various industrial settings.
- 3The MS4N-FRM-FRZ operates within a pressure range of 0 to 14 bar, making it suitable for a wide range of pneumatic applications.
- 4With a standard nominal flow rate of 4050 L/min in the main flow direction and 3250 L/min at the top outlet, this distributor block efficiently manages air flow in industrial processes.
- 5The product is made from die-cast aluminum and is RoHS-compliant, ensuring it meets environmental standards and is durable for long-term use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Structural design | Branching module |
Symbol | 00991510 | Operating pressure | 0bar 14bar |
Standard nominal flow rate in main flow direction 1 -> 2 | 4050l/min | Standard nominal flow rate outlet at top | 3250l/min |
Standard nominal flow rate outlet down | 2900l/min | Certification | c UL us - Recognized (OL) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 60g |
Pneumatic connection 3 | 1/4 NPT | Pneumatic connection 4 | 1/4 NPT |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Manufacturer ID | 554101 |
Specifications may be subject to change without notice
