Product Model

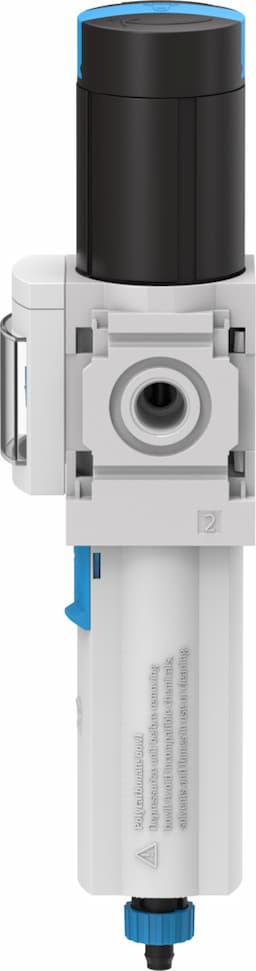

ms4n-lfr-1/4-d6-crv-as
Selling Points
- 1The MS4N-LFR-1/4-D6-CRV-AS filter regulator offers high flow rates, ensuring efficient compressed air preparation for various industrial applications.
- 2With three pressure regulation ranges (4.4 to 59 psi, 7.4 to 176 psi, and 10.4 to 210 psi), this filter regulator provides precise control over operating pressures.
- 3Built with durable materials, including NBR diaphragms and POM separating discs, this filter regulator ensures long-lasting performance and reliability.
- 4The MS4N-LFR-1/4-D6-CRV-AS is designed for modular, in-line, or panel mounting, offering flexibility in installation options.
- 5Equipped with a lockable rotary knob, secondary venting options, and two pressure gauge connections, this filter regulator enhances user control and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 5μm | Condensate drain | Fully automatic Manual, non-detenting |
Structural design | Filter regulator with pressure gauge | Max. condensate volume | 19ml |
Controller function | Outlet pressure constant With secondary exhausting With return flow function | Bowl guard | Plastic bowl guard |
Degree of condensate separation | 75% | Symbol | 00991587 |
Pressure gauge | with pressure gauge | Operating pressure | 2bar 12bar |
Pressure regulation range | 0.3bar 7bar | Max. pressure hysteresis | 0.25bar |
Standard nominal flow rate | 1500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Pore size | 5μm |
Product weight | 275g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Material of operator panel | PA POM | Seals material | NBR |
Compressed air filter material | PE | Housing material | Die-cast aluminum |
Diaphragm material | NBR | Material of bowl | PC |
Separating disc material | POM | Manufacturer ID | 531233 |
Specifications may be subject to change without notice
