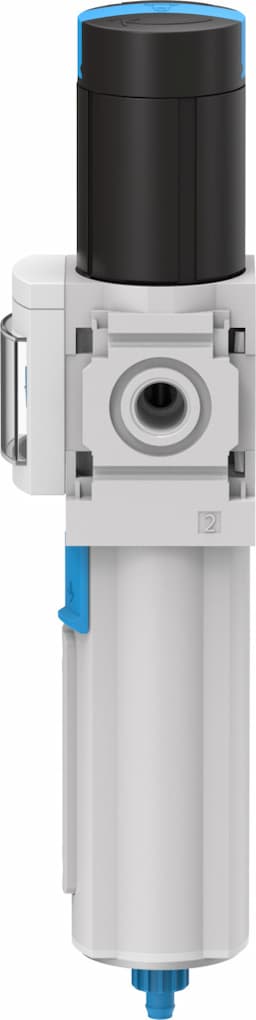

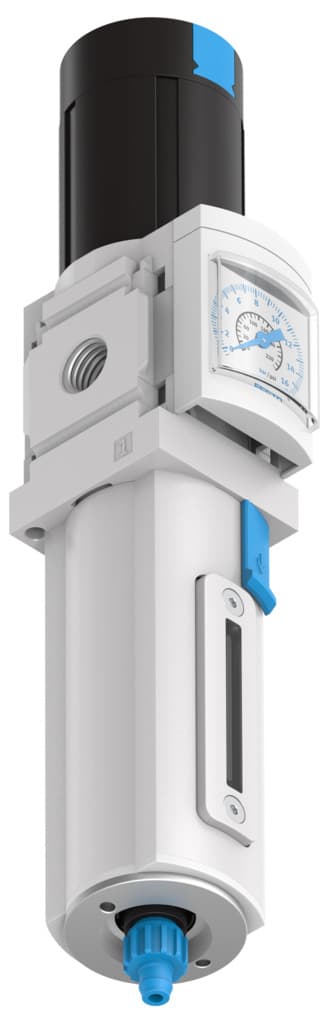

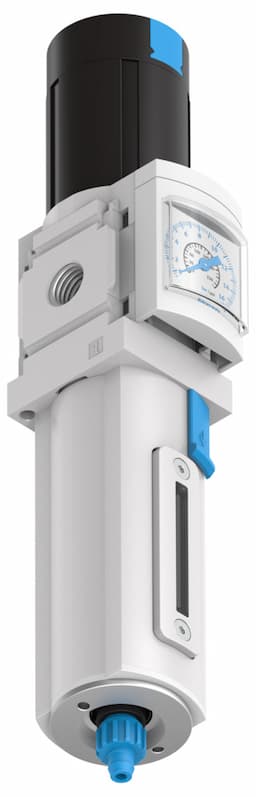

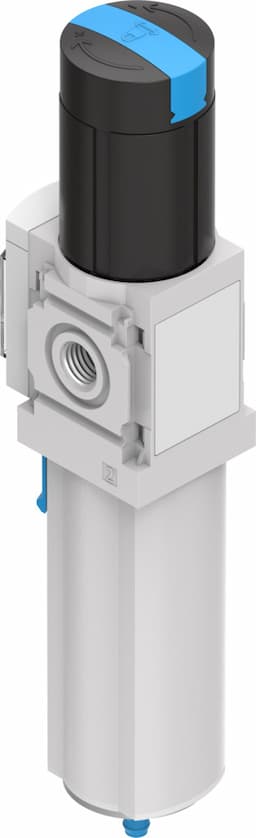

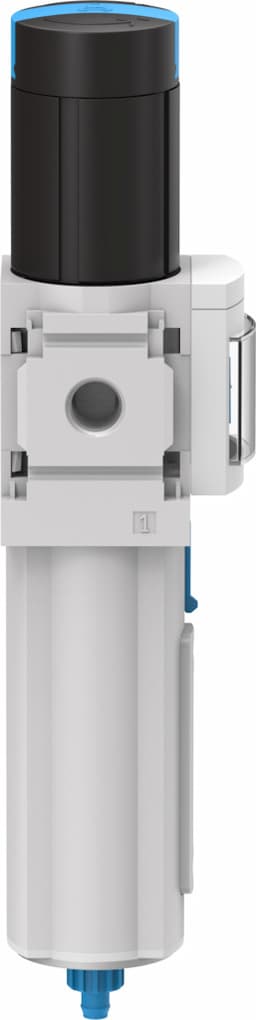

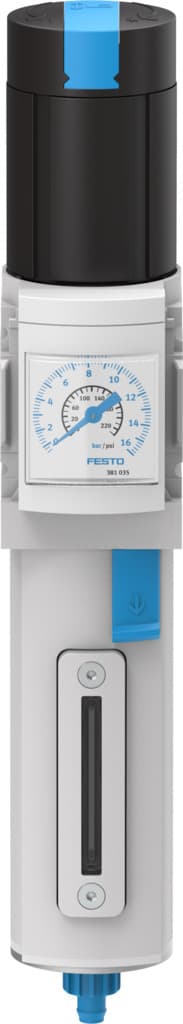

Product Model
ms4n-lfr-1/4-d7-eum-as
Selling Points
- 1The MS4N-LFR 1/4-D7-EUM-AS filter regulator ensures high flow rates, making it suitable for applications requiring efficient air supply.
- 2This filter regulator features a directly actuated diaphragm, providing precise control over pressure regulation.
- 3With low hysteresis and primary pressure compensation, the MS4N-LFR 1/4-D7-EUM-AS offers excellent control characteristics for stable operation.
- 4The regulator is modular, allowing for in-line or panel mounting to fit various installation requirements.
- 5The product has a corrosion resistance class of 2 according to Festo standard 940 070, ensuring durability in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Filter regulator with pressure gauge | Max. condensate volume | 25ml |
Controller function | Outlet pressure constant With secondary exhausting With return flow function | Bowl guard | Integrated as metal bowl guard |
Degree of condensate separation | 75% | Symbol | 00991589 |
Pressure gauge | with pressure gauge | Operating pressure | 0.8bar 14bar |
Pressure regulation range | 0.5bar 12bar | Max. pressure hysteresis | 0.25bar |
Standard nominal flow rate | 1500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Pore size | 40μm |
Product weight | 475g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Material of operator panel | PA POM | Seals material | NBR |
Compressed air filter material | PE | Housing material | Die-cast aluminum |
Diaphragm material | NBR | Material of bowl | Die-cast aluminum Wrought aluminum alloy |
Inspection window material | PA | Separating disc material | POM |
Manufacturer ID | 535756 |
Specifications may be subject to change without notice
