Product Model
ms4n-lr-1/4-d7-as
Selling Points

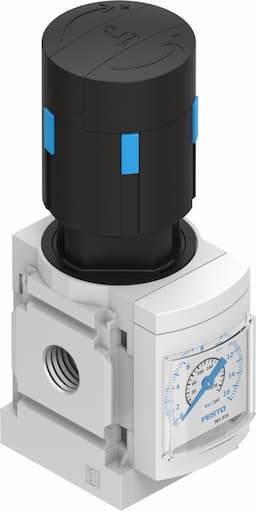

- 1The Festo MS4N-LR-1/4-D7-AS pressure regulator offers a 12 bar maximum output pressure, ensuring reliable and precise control in high-pressure applications.
- 2Equipped with a lockable regulator head, this product provides secure operation and easy maintenance, reducing downtime in industrial settings.

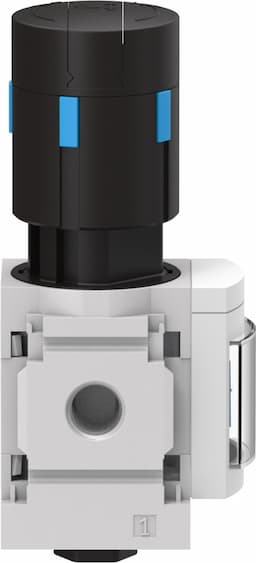

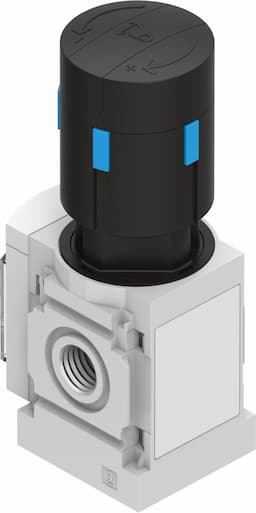

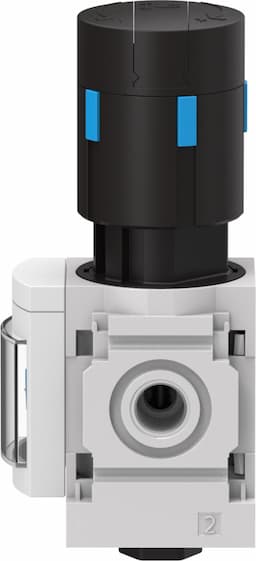

- 3Featuring 2 x 1/4" NPT threaded female ports, the MS4N-LR-1/4-D7-AS facilitates easy pneumatic connections, enhancing flexibility in system design.
- 4With a nominal flow rate of 1700 L/min, this pressure regulator is suitable for a wide range of industrial applications requiring high airflow.

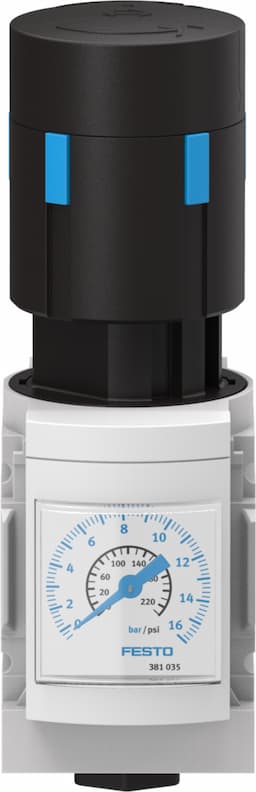

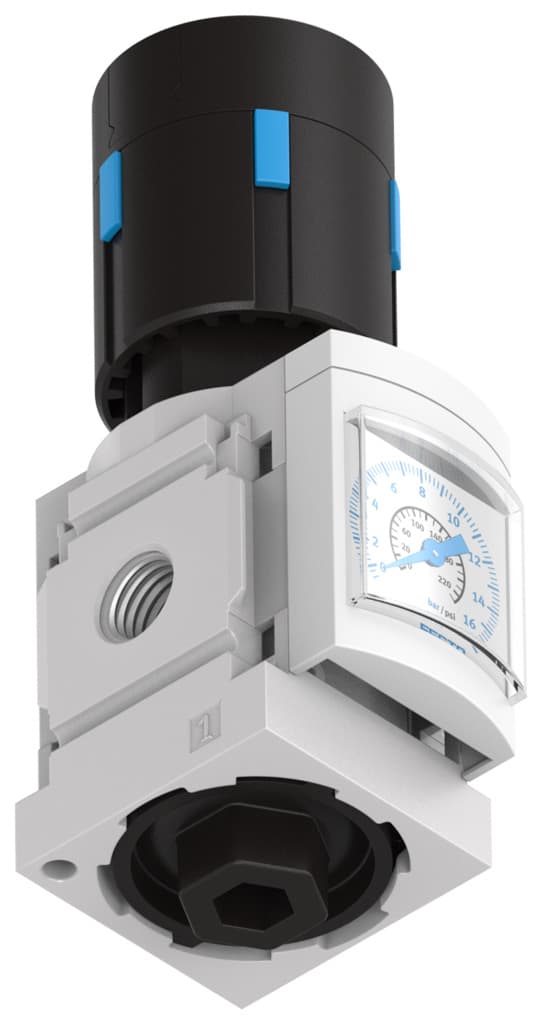

- 5The MS4N-LR-1/4-D7-AS includes a pressure gauge, allowing users to monitor and adjust pressure levels accurately, ensuring optimal system performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Any |
Structural design | Directly controlled diaphragm regulator | Controller function | Outlet pressure constant With secondary exhausting With return flow function |
Symbol | 00991558 | Pressure gauge | with pressure gauge |
Operating pressure | 0.8bar 14bar | Pressure regulation range | 0.5bar 12bar |
Max. pressure hysteresis | 3.625psi | Standard nominal flow rate | 1700l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 225g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Material of operator panel | PA POM | Seals material | NBR |
Housing material | Die-cast aluminum | Diaphragm material | NBR |
Manufacturer ID | 531426 |
Specifications may be subject to change without notice
