Product Model

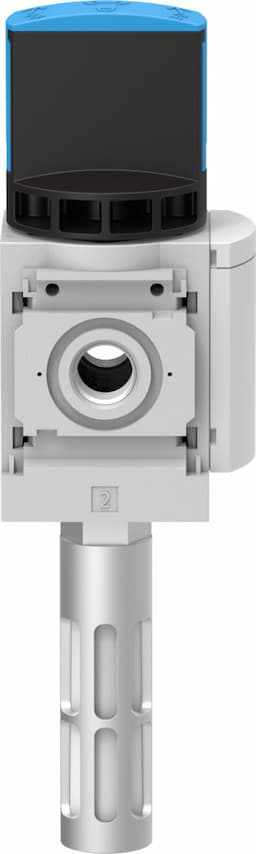

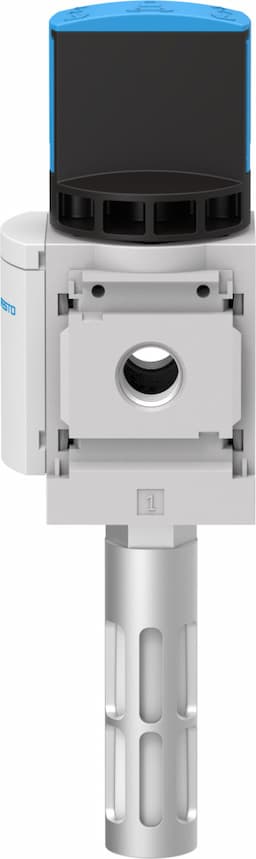

ms6-em1-3/8-s
Selling Points
- 1The Festo MS6-EM1-3/8-S is a manually operated on/off valve designed for reliable pneumatic applications, ensuring precise control and safety in various industrial settings.
- 2This rotary slide valve features a bistable function, allowing for easy switching between open and closed positions, making it ideal for applications requiring frequent start and stop operations.
- 3The MS6-EM1-3/8-S operates within a pressure range of 0 to 18 bar, supporting a standard nominal flow rate of 5,500 l/min, making it suitable for a wide range of pneumatic systems.
- 4The valve is designed to operate with compressed air in accordance with ISO8573-1:2010, ensuring compatibility with various industrial environments and maintaining high performance standards.
- 5The MS6-EM1-3/8-S is built with materials that are free of copper and PTFE, conforming to RoHS standards, and offers moderate corrosion resistance, making it a durable choice for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Rotary gate valve | Actuation type | Manual |
Exhaust air function | Without flow control option | Type of control | Direct |
Symbol | 00991670 | Valve function | 3/2, bistable |
Operating pressure | 0bar 18bar | C value | 21.2l/sbar |
b-value | 0.49 | Standard nominal flow rate | 5500l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 655g |
Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
Pneumatic connection 3 | Pneumatic muffler integrated Not ducted | Seals material | TPE-U(PU) |
Housing material | Die-cast aluminum | Manufacturer ID | 541276 |
Specifications may be subject to change without notice
