Product Model

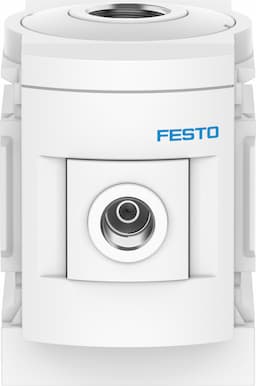

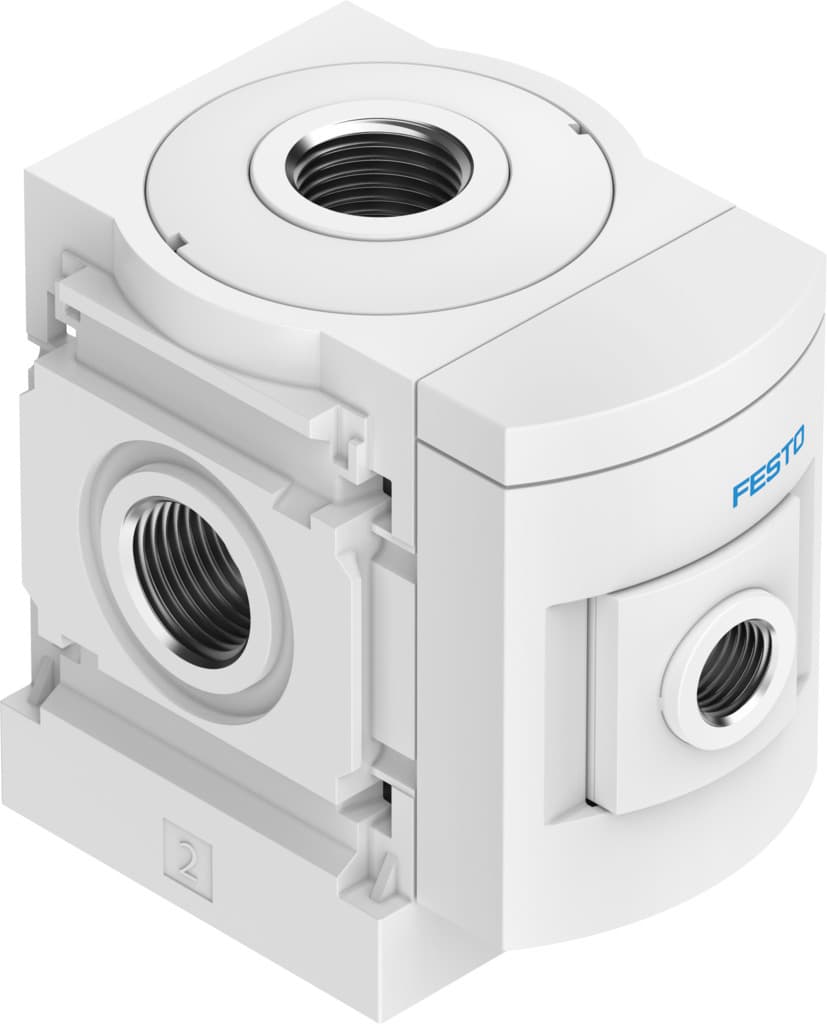

ms6-frm-1/2-a4-f1a
Selling Points
- 1The MS6-FRM-1/2-A4-F1A ensures reliable compressed air preparation and system supply, maximizing machine availability through controlled processes.
- 2This module offers various pneumatic connections, including 1/4, 3/8, and 1/2 female threads, making it adaptable to different applications and system configurations.
- 3The MS6-FRM-1/2-A4-F1A features an integrated non-return function, ensuring that air flows in the desired direction and preventing backflow, which enhances system reliability.
- 4The module is compatible with EN pressure gauges, allowing for easy integration and monitoring of pressure levels. It also includes adapters for different pressure gauge configurations.
- 5Designed for high-performance applications, the MS6-FRM-1/2-A4-F1A supports standard nominal flow rates of up to 9200 l/min, making it suitable for demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Application note | Foreign particles can remain stuck to the product or form during installation. Depending on the application, it may be necessary to purge the product with clean compressed air, clean it after installation and operate it with ducted exhaust air. | Mounting position | Any |
Structural design | Branching module | Symbol | 00991510 |
Operating pressure | 0bar 20bar | Standard nominal flow rate in main flow direction 1 -> 2 | 14700l/min |
Standard nominal flow rate outlet at top | 4400l/min | Standard nominal flow rate outlet down | 4600l/min |
Operating voltage range AC | 0V 250V | DC operating voltage range | 0V 125V |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 458g |
Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
Pneumatic connection 3 | G1/2 | Pneumatic connection 4 | G1/2 |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Manufacturer ID | 8183566 |
Specifications may be subject to change without notice
