Product Model

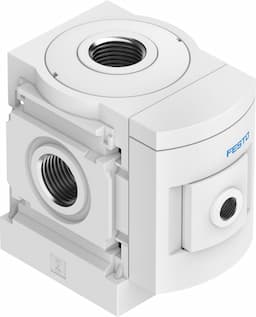

ms6-frm-1/2-a8-f1a
Selling Points
- 1The Festo MS6-FRM-1/2-A8-F1A is a high-quality pneumatic component designed for industrial automation, ensuring reliable and efficient performance in various applications.
- 2This component features standardized IO-Link technology, simplifying communication with sensors and actuators, and reducing material requirements.
- 3The MS6-FRM-1/2-A8-F1A is part of Festo's extensive range of pneumatic cylinder drives, including piston rod cylinders, rodless cylinders, and swivel cylinders.
- 4It offers flexible mounting options, including in-line installation and mounting brackets, making it easy to integrate into existing systems.
- 5The component is built with a focus on quality and reliability, conforming to ISO standards and ensuring consistent performance across various operating conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Application note | Foreign particles can remain stuck to the product or form during installation. Depending on the application, it may be necessary to purge the product with clean compressed air, clean it after installation and operate it with ducted exhaust air. | Mounting position | Any |
Structural design | Branching module | Symbol | 00991510 |
Operating pressure | 0bar 20bar | Standard nominal flow rate in main flow direction 1 -> 2 | 14700l/min |
Standard nominal flow rate outlet at top | 4400l/min | Standard nominal flow rate outlet down | 4600l/min |
Operating voltage range AC | 0V 250V | DC operating voltage range | 0V 125V |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 458g |
Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
Pneumatic connection 3 | G1/2 | Pneumatic connection 4 | G1/2 |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Manufacturer ID | 8183567 |
Specifications may be subject to change without notice
