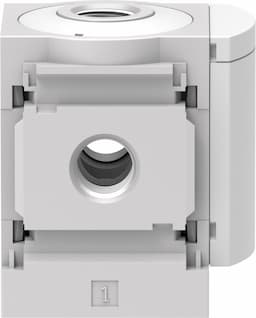

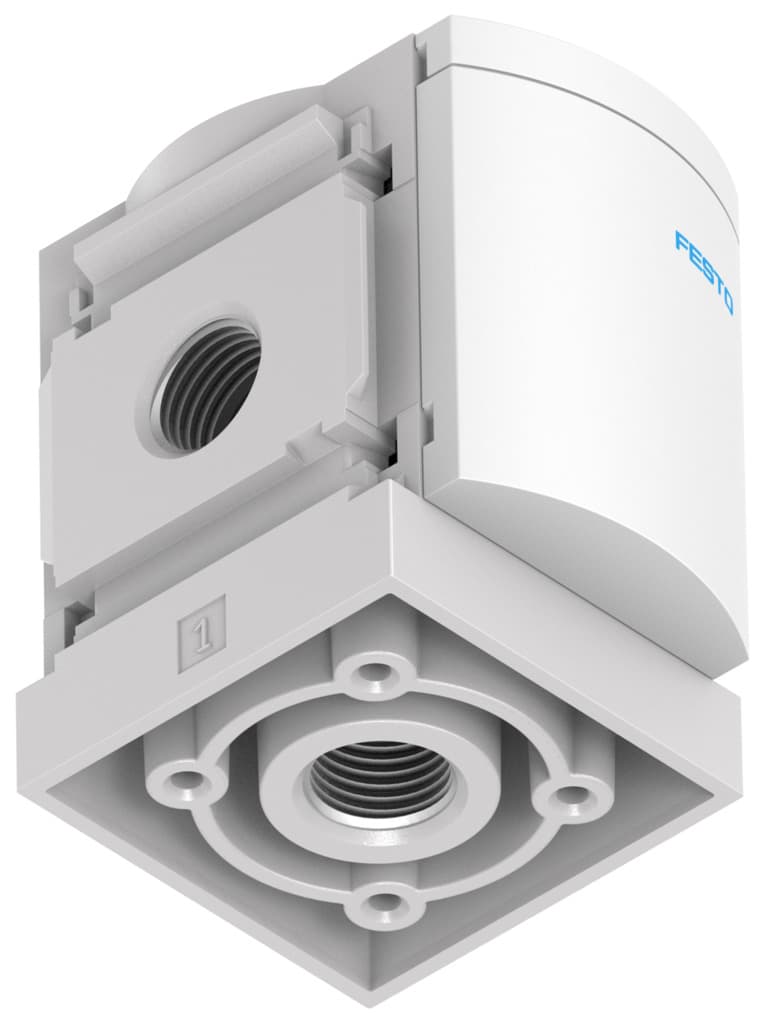

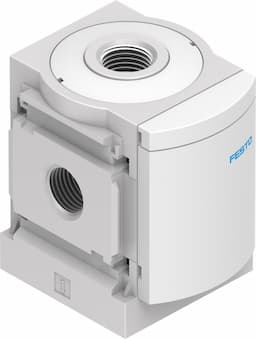

Festo MS6-FRM-1/2-Z Branching Module: High-Performance Pneumatic Solutions

Selling Points

1The Festo MS6-FRM-1/2-Z is a high-performance branching module designed for optimal pneumatic system flow rates, ensuring maximum machine availability and efficiency.
2This module features a standard nominal flow rate of up to 14,700 l/min in the main flow direction, making it suitable for a wide range of industrial applications.
3The MS6-FRM-1/2-Z offers flexible mounting options and is compatible with various pneumatic connections, including G1/4, G3/8, and G1/2 threads.
4Equipped with an optional non-return function, this module prevents backflow and ensures consistent air supply, enhancing system reliability.
5The module operates within a pressure range of 0 to 20 bar, making it versatile for various industrial settings and applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Mounting position	Any	Structural design	Branching module
Symbol	00991510	Operating pressure	0bar 20bar
Standard nominal flow rate in main flow direction 1 -> 2	14700l/min	Standard nominal flow rate outlet at top	4400l/min
Standard nominal flow rate outlet down	4600l/min	Operating voltage range AC	0V 250V
DC operating voltage range	0V 125V	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Storage temperature	-10°C 60°C
For use in the food industry	See supplementary material information	Temperature of medium	-10°C 60°C
Ambient temperature	-10°C 60°C	Product weight	458g
Pneumatic connection 1	G1/2	Pneumatic connection 2	G1/2
Pneumatic connection 3	G1/2	Pneumatic connection 4	G1/2
Note on materials	RoHS-compliant	Housing material	Die-cast aluminum
Manufacturer ID	529856

Specifications may be subject to change without notice
