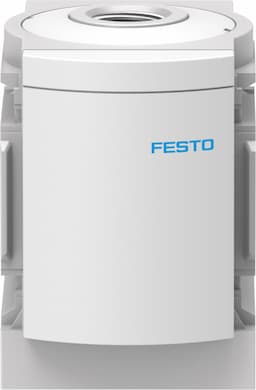

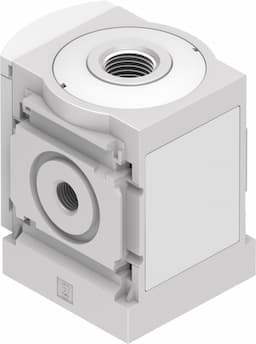

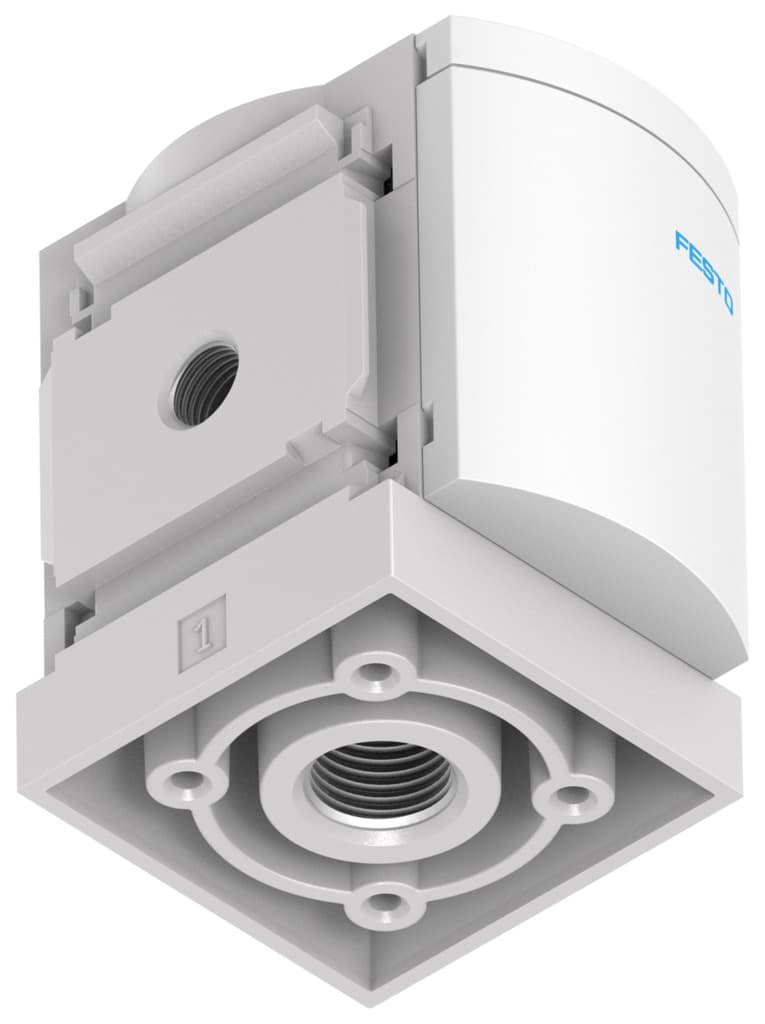

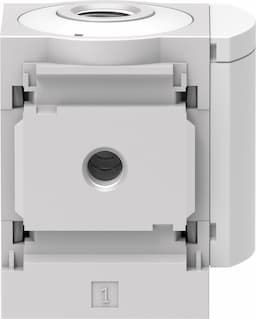

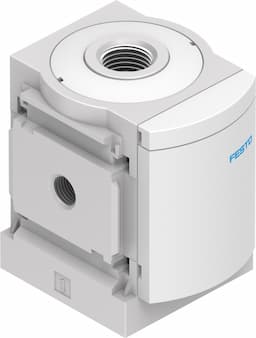

Festo MS6-FRM-1/4 Branching Module - High-Quality Air Distribution

Selling Points

1The Festo MS6-FRM-1/4 branching module ensures reliable and efficient air distribution with four connections, making it perfect for various industrial applications.
2Equipped with an integrated non-return function, this module prevents backflow, ensuring consistent air quality and system performance.
3The module operates within a pressure range of 0 to 20 bar and ambient temperatures from -10°C to 60°C, making it versatile for different environments.
4Designed as a part of Festo's modular system, the MS6-FRM-1/4 can be easily configured and integrated with other Festo products for customized solutions.
5Made from die-cast aluminum, this module offers durability and resistance to corrosion, ensuring long-lasting performance in industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Mounting position	Any	Structural design	Branching module
Symbol	00991510	Operating pressure	0bar 20bar
Standard nominal flow rate in main flow direction 1 -> 2	4200l/min	Standard nominal flow rate outlet at top	6000l/min
Standard nominal flow rate outlet down	6400l/min	Operating voltage range AC	0V 250V
DC operating voltage range	0V 125V	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Storage temperature	-10°C 60°C
For use in the food industry	See supplementary material information	Temperature of medium	-10°C 60°C
Ambient temperature	-10°C 60°C	Product weight	458g
Pneumatic connection 1	G1/4	Pneumatic connection 2	G?
Pneumatic connection 3	G1/2	Pneumatic connection 4	G1/2
Note on materials	RoHS-compliant	Housing material	Die-cast aluminum
Manufacturer ID	529857

Specifications may be subject to change without notice
