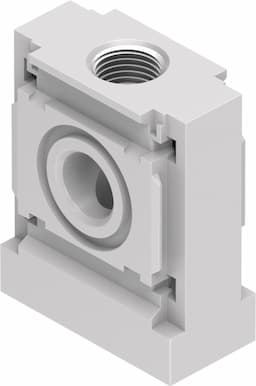

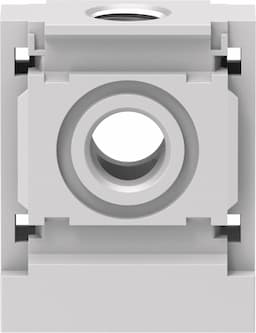

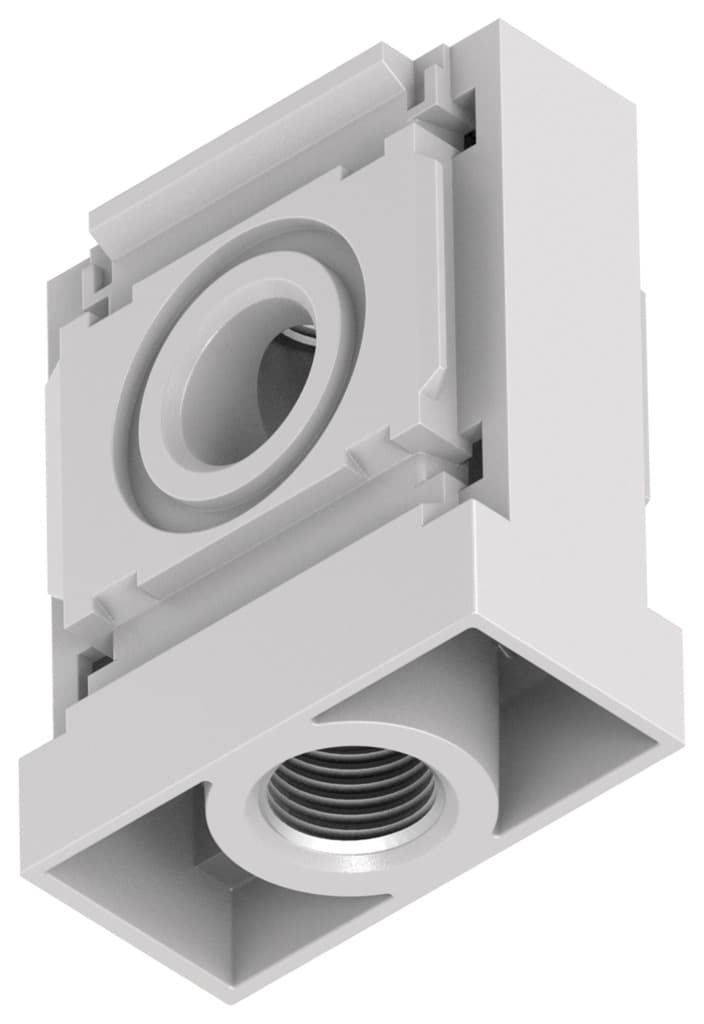

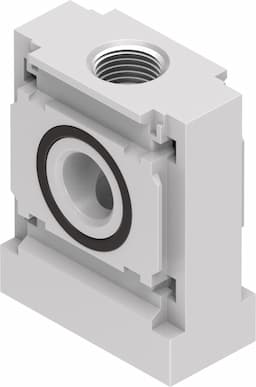

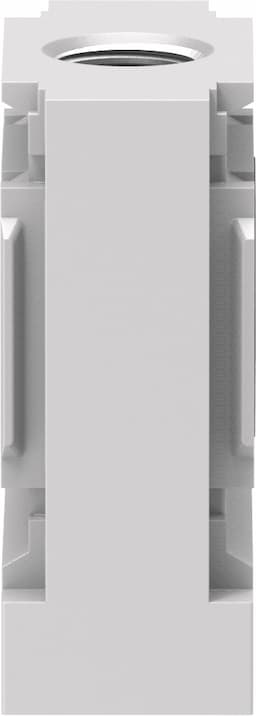

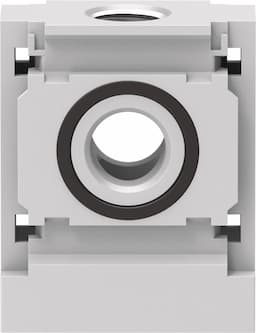

Festo MS6-FRM-FRZ Distributor Block: High-Flow Pneumatic Module

Selling Points

1High-Flow Capability: The Festo MS6-FRM-FRZ distributor block offers a standard nominal flow rate of 14,600 l/min, making it suitable for high-demand pneumatic systems.
2Versatile Design: This branching module can be used in any assembly position and is designed to handle compressed air and inert gases according to ISO 8573-1:2010 standards.
3Corrosion Resistance: With a corrosion resistance class of CRC 2, the MS6-FRM-FRZ is suitable for indoor applications where condensation may occur, ensuring durability in various environments.
4Operating Pressure Range: The module operates within a pressure range of 0 to 20 bar, making it versatile for different pneumatic system configurations.
5Material Quality: Constructed from die-cast aluminum, the MS6-FRM-FRZ is RoHS-compliant and free of copper and PTFE, ensuring high-quality performance and compliance with environmental regulations.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Mounting position	Any	Structural design	Branching module
Symbol	00991510	Operating pressure	0bar 20bar
Standard nominal flow rate in main flow direction 1 -> 2	14600l/min	Standard nominal flow rate outlet at top	10400l/min
Standard nominal flow rate outlet down	9850l/min	Certification	c UL us - Recognized (OL)
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-10°C 60°C	Temperature of medium	-10°C 60°C
Ambient temperature	-10°C 60°C	Product weight	163g
Pneumatic connection 3	G1/2	Pneumatic connection 4	G1/2
Note on materials	RoHS-compliant	Housing material	Die-cast aluminum
Manufacturer ID	549337

Specifications may be subject to change without notice
