Product Model

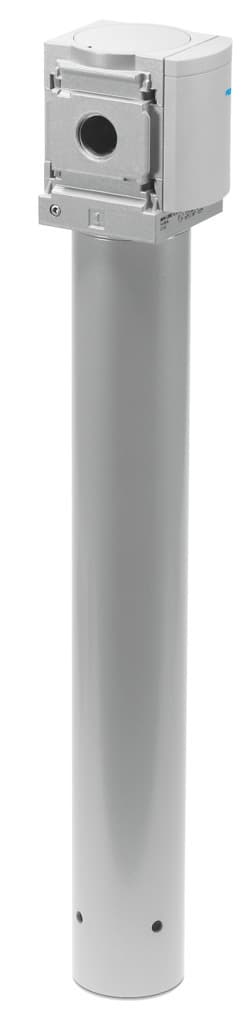

ms6-ldm1
Selling Points
- 1The MS6-LDM1 membrane air dryer provides a standard nominal flow rate of 400 l/min, ensuring efficient compressed air preparation for various industrial applications.
- 2Designed to minimize energy consumption, the MS6-LDM1 offers a cost-optimised solution with up to 30% savings in energy costs.
- 3Constructed with a die-cast aluminium housing and wrought aluminium alloy bowl, the MS6-LDM1 is built to withstand moderate corrosion stress and operate reliably in a wide temperature range.
- 4The MS6-LDM1 conforms to ISO 8573-1:2010 and ISO 228-1 standards, ensuring high air purity and reliability in compressed air systems.
- 5Available for in-line installation or with accessories, the MS6-LDM1 offers flexible mounting options to suit various industrial settings and configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Mounting position | Vertical +/- 5° | Structural design | Membrane dryer |
Symbol | 00991516 | Operating pressure | 3bar 12.5bar |
Standard nominal flow rate | 200l/min 400l/min | Certification | c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
ATEX category gas | II 2G | ATEX category for dust | II 2D |
Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
Explosive ambient temperature | +2°C <= Ta <= +50°C | Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2] |
Information on operating and pilot media | Operation with oil lubrication not possible | Pressure dew point reduction | 20K |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -20°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:3:2] | Temperature of medium | 2°C 50°C |
Ambient temperature | 2°C 50°C | Type of mounting | Optionally: Line installation With accessories |
Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
Manufacturer ID | 543638 |
Specifications may be subject to change without notice
