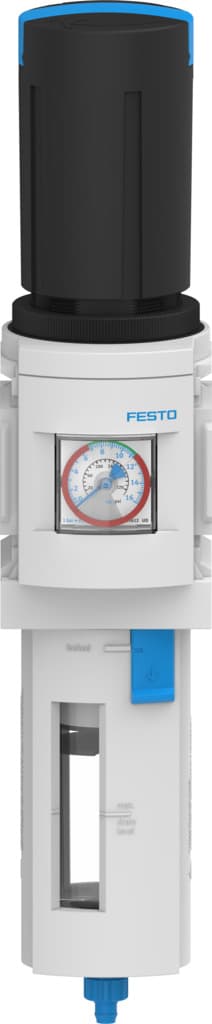

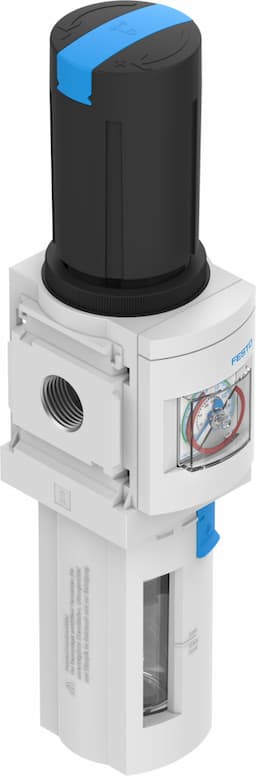

Product Model
ms6-lfr-1/2-d7-e-r-m-rg-as
Selling Points
- 1Precise Filtration: Removes contaminants down to 40 μm for clean compressed air.
- 2Robust Construction: Built with polycarbonate bowl material for durability and resistance to high temperatures.
- 3Flexible Port Options: Available with G 1/2 port connection for easy integration into various systems.
- 4Manual Drain Option: Allows for choice of fully automatic or manual drain for convenient maintenance.
- 5High Flow Rates: Achieves maximum flow rates with integrated return flow for efficient air supply.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Filter regulator with pressure gauge | Max. condensate volume | 38ml |
Controller function | Outlet pressure constant With secondary exhausting | Bowl guard | Plastic bowl guard |
Degree of condensate separation | 75% | Symbol | 00991589 |
Pressure gauge | Red-green scale | Operating pressure | 0.8bar 20bar |
Pressure regulation range | 0.5bar 12bar | Max. pressure hysteresis | 3.625psi |
Standard nominal flow rate | 4500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Pore size | 40μm |
Product weight | 875g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
Note on materials | RoHS-compliant | Material of operator panel | PA POM |
Seals material | NBR | Compressed air filter material | PE |
Housing material | Die-cast aluminum | Diaphragm material | NBR |
Material of bowl | PC | Separating disc material | POM |
Manufacturer ID | 579051 |
Specifications may be subject to change without notice
