Product Model

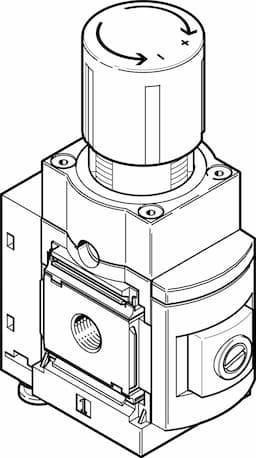

ms6-lrpb-1/2-d5-a8
Selling Points
- 1The Festo MS6-LRPB-1/2-D5-A8 is a precision pressure regulator designed for manifold assembly, offering high accuracy and reliability in compressed air preparation.
- 2Equipped with a rotary knob with detent, this regulator provides easy and precise control over pressure settings, ensuring consistent performance.
- 3The MS6-LRPB-1/2-D5-A8 features a piloted precision diaphragm control valve, ensuring that pressure is regulated with minimal energy consumption and long service life.
- 4This regulator is part of the MS series, known for its high-quality components and robust design, making it suitable for demanding industrial applications.
- 5The optional mounting position of the MS6-LRPB-1/2-D5-A8 allows for flexible installation, accommodating various system configurations and layouts.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with detent | Mounting position | Any |
Structural design | Pilot-controlled precision diaphragm regulator | Controller function | Outlet pressure constant With secondary exhausting |
Symbol | 00991973 | Pressure gauge | G1/8 prepared |
Operating pressure | 1bar 14bar | Pressure regulation range | 0.1bar 4bar |
Max. pressure hysteresis | 0.02bar | Flow rate of secondary venting | 650l/min |
Standard nominal flow rate | 3000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 850g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Aluminum |
Manufacturer ID | 534917 |
Specifications may be subject to change without notice
