Product Model
ms6n-de-1/2-v110
Selling Points

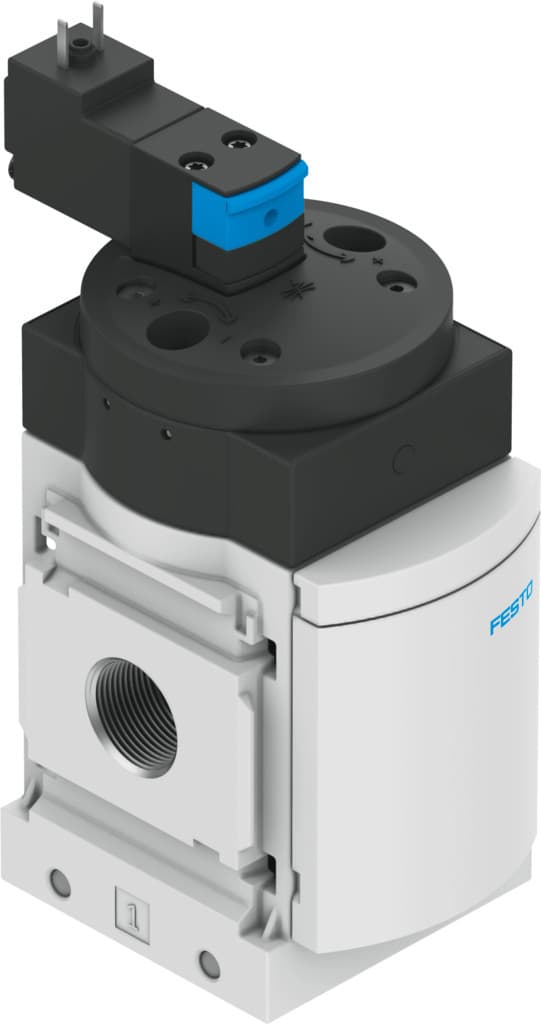

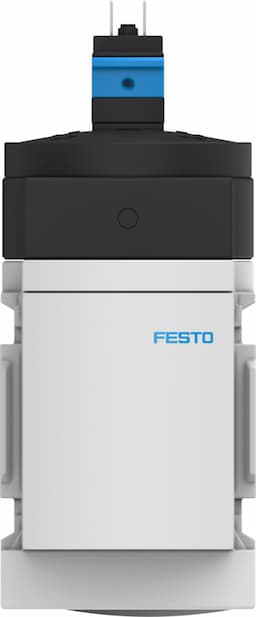

- 1The Festo MS6N-DE-1/2-V110 is a 3/2-way electrically actuated solenoid soft-start pneumatic valve designed for precise control in industrial applications. It features non-detenting/detenting manual override and internal pilot air for enhanced functionality.
- 2This valve is ideal for applications requiring slow pressurization and quick exhaust functions, ensuring smooth operation and efficient system management.
- 3Equipped with a non-detenting/detenting manual override, the MS6N-DE-1/2-V110 allows for easy manual control when needed, providing flexibility in operation.
- 4The valve operates on a 110 V AC supply voltage, making it compatible with a wide range of industrial power sources. It also supports 24 V DC for added versatility.
- 5The MS6N-DE-1/2-V110 is built with high-quality materials and designed to meet IP65 protection standards, ensuring durability and reliability in harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Actuation type | Electrical | Mounting position | Any |
Manual override | Detenting Non-detenting | Structural design | Piston seat |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991501 | Valve function | 2/2 |
Switching position indication | with accessories | Operating pressure | 4bar 18bar |
b-value | 0.39 | C value | 28.97l/sbar |
Standard nominal flow rate | 6450l/min | Duty cycle | 100% |
Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA | Certification | c UL - Recognized (OL) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
Degree of protection | IP65 | Ambient temperature | -10°C 60°C |
Product weight | 680g | Electrical connection | Form C Plug as per DIN EN 175301-803 Rectangular design |
Signal status display | With accessories | Type of mounting | Optionally: Line installation With accessories |
Pneumatic connection 1 | 1/2 NPT | Pneumatic connection 2 | 1/2 NPT |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 532042 |
Specifications may be subject to change without notice
