Product Model

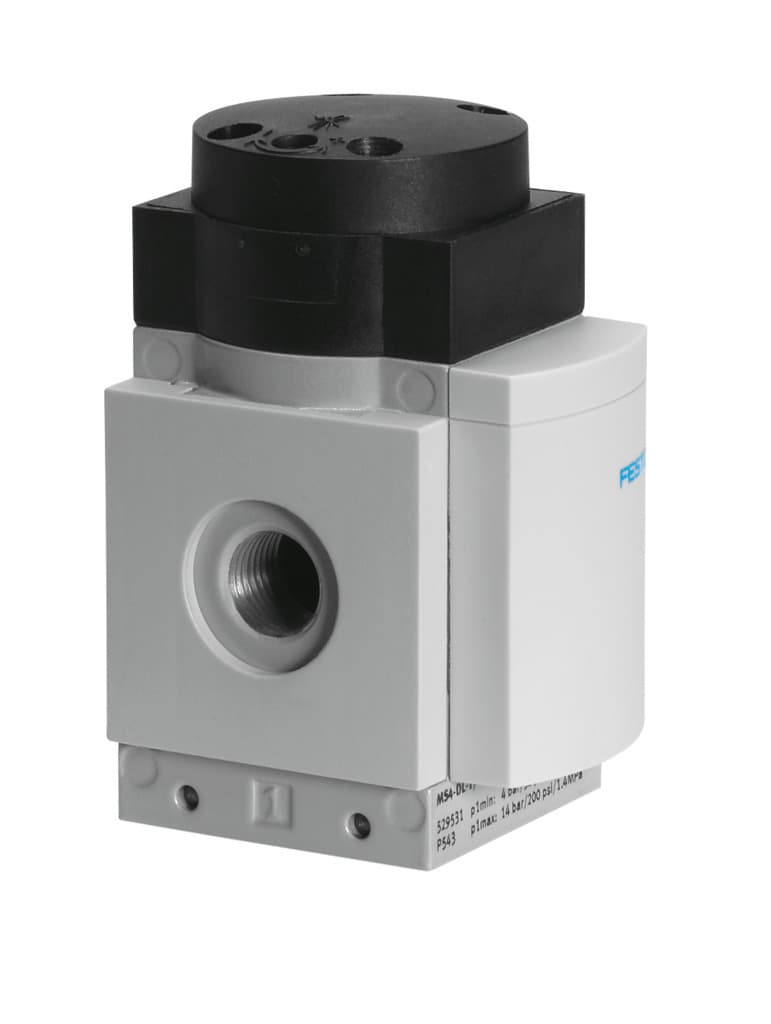

ms6n-dl-1/4
Selling Points
- 1The Festo MS6N-DL-1/4 soft-start valve ensures reliable pneumatic control with its non-reversible flow feature, ideal for applications requiring precise pressure management.
- 2This valve features adjustable pressure switchover, allowing you to set the exact pressure point at which the valve opens, ensuring optimal performance in various industrial settings.
- 3The MS6N-DL-1/4 is designed for slow pressurization and venting, making it perfect for applications where gradual pressure buildup is crucial, such as in manufacturing and automation.
- 4With its external pilot air control, this valve provides precise control over pneumatic systems, ensuring that air is used efficiently and effectively.
- 5The MS6N-DL-1/4 is built to withstand various environmental conditions, including ambient temperatures ranging from 14°F to 140°F, making it suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Exhaust air function | With flow control option | Actuation type | Pneumatic |
Mounting position | Any | Manual override | None |
Structural design | Piston seat | Reset method | Mechanical spring |
Type of control | Direct | Pilot air supply port | External |
Flow direction | Non-reversible | Symbol | 00991513 |
Valve function | 2/2 | Operating pressure | 4bar 18bar |
b-value | 0.54 | C value | 11.22l/sbar |
Standard nominal flow rate | 2800l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | For use in the food industry | See supplementary material information |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 650g | Type of mounting | Optionally: Line installation With accessories |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 532023 |
Specifications may be subject to change without notice
