Product Model

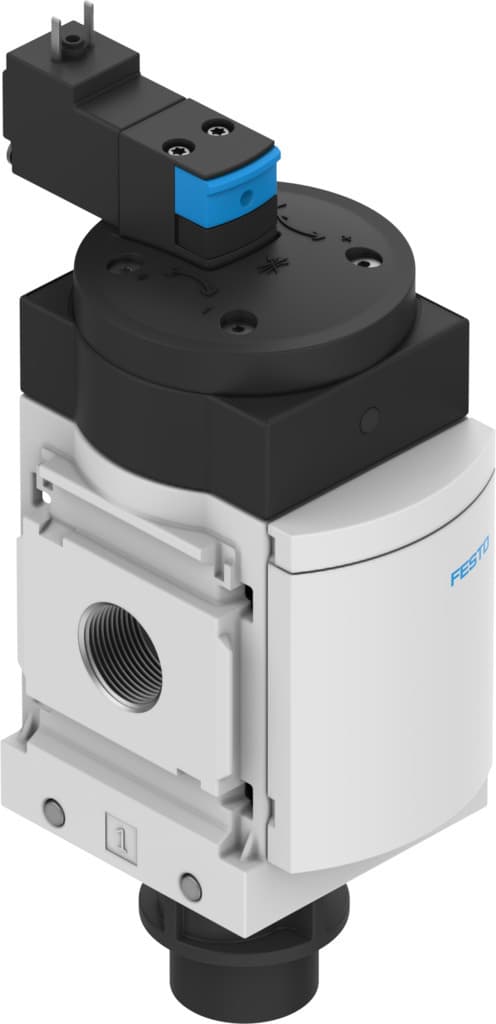

ms6n-ee
Selling Points
- 1The MS6N-EE on/off valve is engineered for reliable operation in various pneumatic applications, ensuring consistent performance and durability.
- 2This valve is electrically actuated, providing precise control and quick response times, making it ideal for automated systems.
- 3The valve operates within a pressure range of 4 to 18 bar, accommodating diverse pneumatic system requirements.
- 4With a standard nominal flow rate of 2600 to 7000 liters per minute, the MS6N-EE ensures efficient air flow management in your system.
- 5The valve meets EU and UK regulations, including CE marking and RoHS compliance, ensuring safety and environmental responsibility in your operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Piston gate valve | Actuation type | Electrical |
Exhaust air function | Without flow control option | Manual override | Detenting None Non-detenting |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Valve function | 3/2, closed, monostable | Pressure gauge | G1/4 prepared with pressure sensor with pressure gauge |
Operating pressure | 4bar 18bar | Standard nominal flow rate | 2600l/min 7000l/min |
Duty cycle | 100% | Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA 24 V DC: 2.5 W |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -10°C 60°C |
Degree of protection | IP65 | Ambient temperature | -10°C 60°C |
Certification | c UL us - Recognized (OL) | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
For use in the food industry | See supplementary material information | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Any | Flow direction | Non-reversible |
Product weight | 740g | Pneumatic connection 3 | G1/2 |
Pilot air supply port | Internal | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 527683 |
Specifications may be subject to change without notice
