Product Model
ms6n-ee-1/4-v230-z
Selling Points

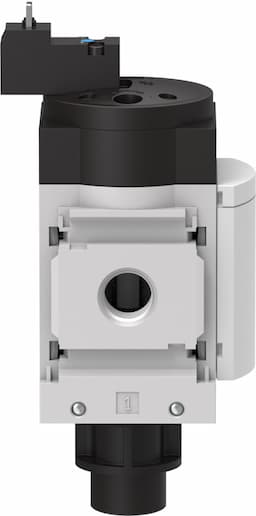

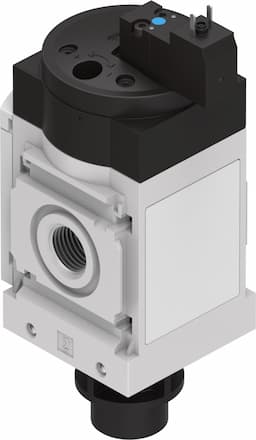

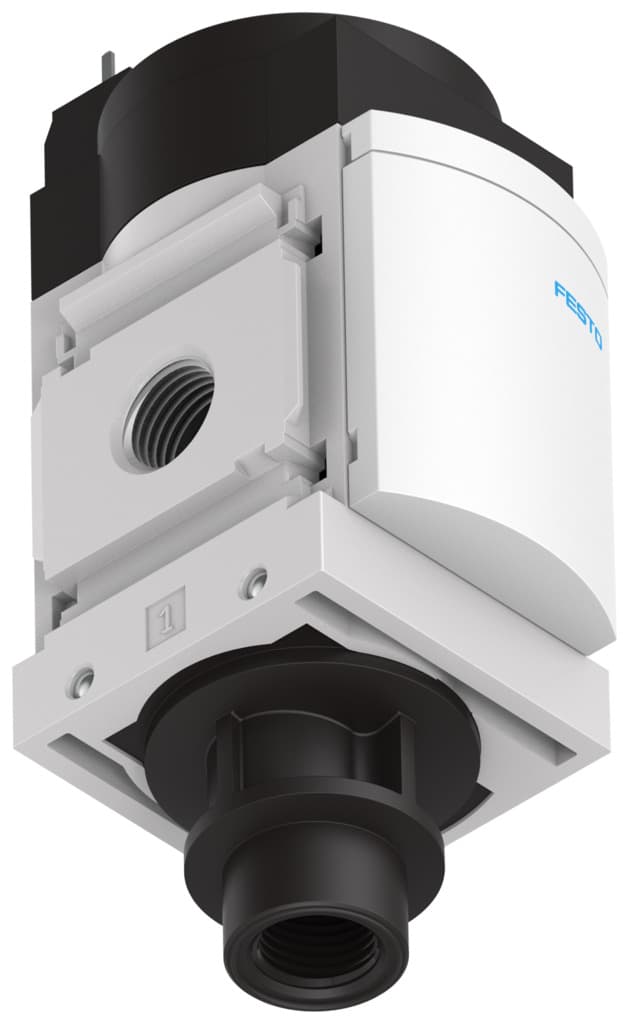

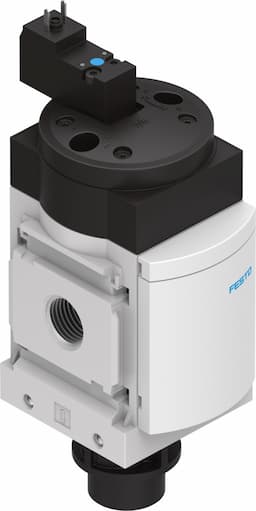

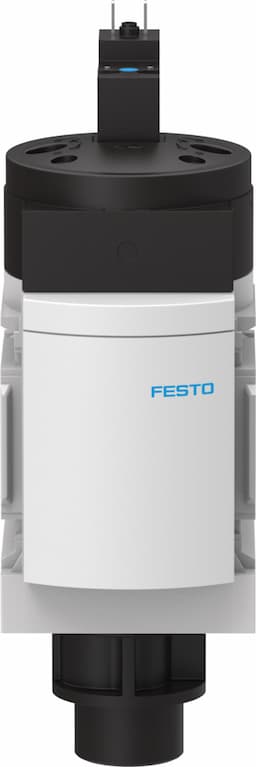

- 1The Festo MS6N-EE-1/4-V230-Z is a 3/2-way normally closed electrically-actuated solenoid on-off valve designed for precise control in industrial automation applications.
- 2This valve features flow direction from right to left, ensuring efficient operation in various pneumatic systems.
- 3With a service-life value of 0.35 million cycles, the MS6N-EE-1/4-V230-Z offers high reliability and durability in demanding industrial environments.
- 4The valve is designed with a piloted piston spool, enhancing its vibration resistance and shock tolerance according to EN 60068-2-6 and FN 942017-5 standards.
- 5The MS6N-EE-1/4-V230-Z is part of Festo's comprehensive range of pneumatic components, ensuring compatibility and integration with other Festo products for seamless system operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Piston gate valve | Actuation type | Electrical |
Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00991008 | Valve function | 3/2, closed, monostable |
Operating pressure | 4bar 18bar | C value | 11l/sbar |
b-value | 0.5 | Standard nominal flow rate | 2600l/min |
Duty cycle | 100% | Coil characteristics | 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA |
Permissible voltage fluctuations | -14 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B2-L |
Temperature of medium | -10°C 60°C | Degree of protection | IP65 |
Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 740g |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | G1/2 | Pilot air supply port | Internal |
Electrical connection | Form C Plug as per DIN EN 175301-803 Rectangular design | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 532118 |
Specifications may be subject to change without notice
