Product Model
ms6n-ee-3/8-10v24-s
Selling Points

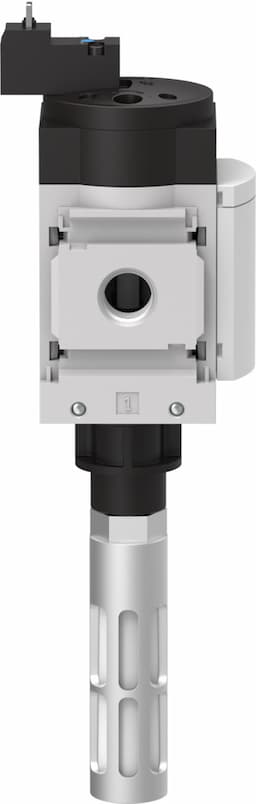

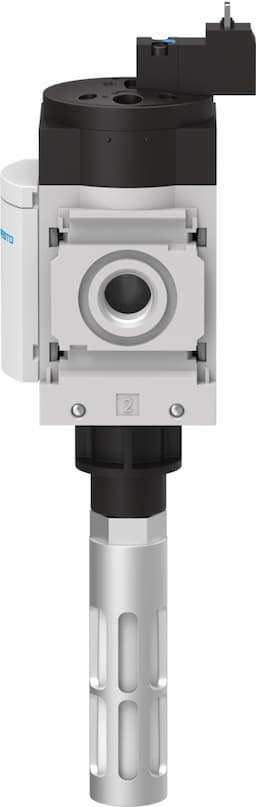

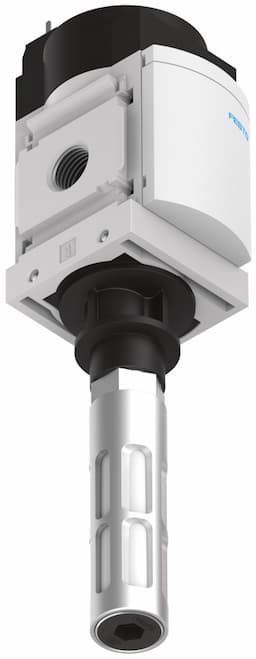

- 1The Festo MS6N-EE-3/8-10V24-S is an electrically actuated pneumatic valve designed for precise control in various industrial applications. It offers reliable performance and durability.
- 2This valve features a 3/8 inch NPT connection size, making it versatile for different pneumatic systems. It is compatible with 24 V DC power, ensuring efficient operation.
- 3The MS6N-EE-3/8-10V24-S valve is built with high-quality materials, ensuring resistance to corrosion and maintaining its performance over time. It is ideal for applications requiring moderate corrosion resistance.
- 4This valve supports a wide range of operating conditions, including ambient temperatures from 14°F to 140°F and medium temperatures from 14°F to 140°F. It is suitable for various industrial environments.
- 5The Festo MS6N-EE-3/8-10V24-S valve is part of Festo's extensive range of pneumatic components, offering a one-stop solution for all your automation needs. It integrates seamlessly with other Festo products for comprehensive system control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Piston gate valve | Actuation type | Electrical |
Exhaust air function | Without flow control option | Manual override | Non-detenting |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00991008 | Valve function | 3/2, closed, monostable |
Operating pressure | 4bar 10bar | C value | 22l/sbar |
b-value | 0.5 | Standard nominal flow rate | 5500l/min |
Duty cycle | 100% | Coil characteristics | 24 V DC: 2.5 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B2-L |
Temperature of medium | -10°C 60°C | Degree of protection | IP65 |
Ambient temperature | -10°C 50°C | For use in the food industry | See supplementary material information |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 816g |
Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 2 | 3/8 NPT |
Pneumatic connection 3 | G1/2 | Pilot air supply port | Internal |
Electrical connection | Form C Plug as per DIN EN 175301-803 Rectangular design | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 542616 |
Specifications may be subject to change without notice
