Product Model
ms6n-em1-1/2
Selling Points

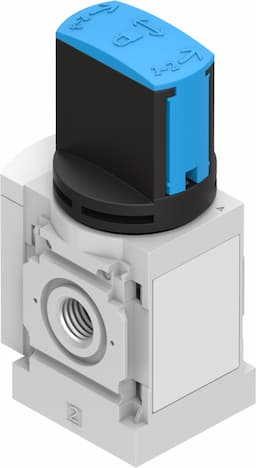

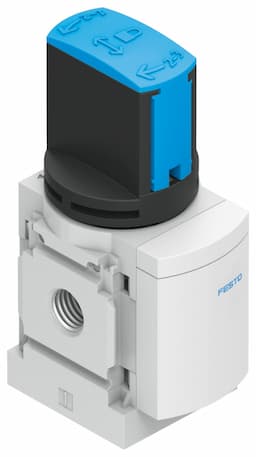

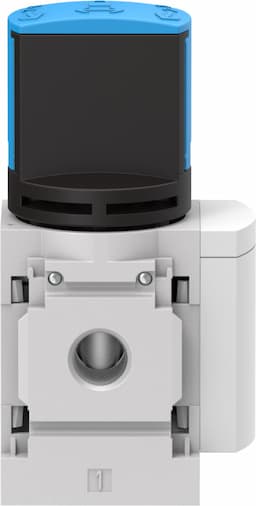

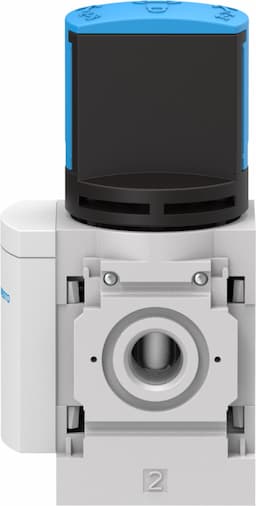

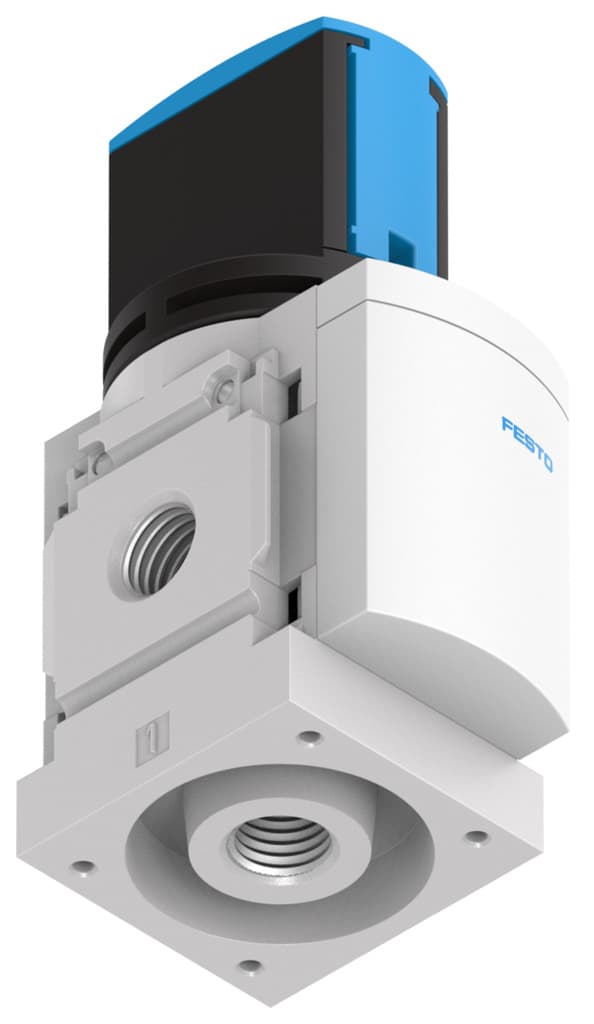

- 1The Festo MS6N-EM1-1/2 is a manually operated rotary gate valve designed for shut-off applications in compressed air systems. It features a direct type of control and does not include flow control options.
- 2This valve operates within a pressure range of 0 to 18 bar and is compatible with compressed air to ISO 8573-1:2010, as well as inert gases. It also supports lubricated operation, which is always required in such cases.
- 3The MS6N-EM1-1/2 is constructed from die-cast aluminum and features TPE-U(PU) material seals, ensuring high corrosion resistance and durability. It is also RoHS-compliant and meets LABS (PWIS) conformity standards.
- 4This valve is suitable for use in various environments, including temperatures ranging from -10°C to 60°C. It is also suitable for use with food, making it a versatile solution for different industrial applications.
- 5The product has undergone rigorous testing for reliability, including vibration and shock resistance tests. It has a service-life value of 0.025 million cycles and is a well-tried component for safety-related applications according to ISO 13849-1.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Rotary gate valve | Actuation type | Manual |
Exhaust air function | Without flow control option | Type of control | Direct |
Symbol | 00991670 | Valve function | 3/2, bistable |
Operating pressure | 0bar 18bar | C value | 30.8l/sbar |
b-value | 0.57 | Standard nominal flow rate | 7000l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 580g |
Pneumatic connection 1 | 1/2 NPT | Pneumatic connection 2 | 1/2 NPT |
Pneumatic connection 3 | 1/2 NPT | Seals material | TPE-U(PU) |
Housing material | Die-cast aluminum | Manufacturer ID | 541289 |
Specifications may be subject to change without notice
