Product Model

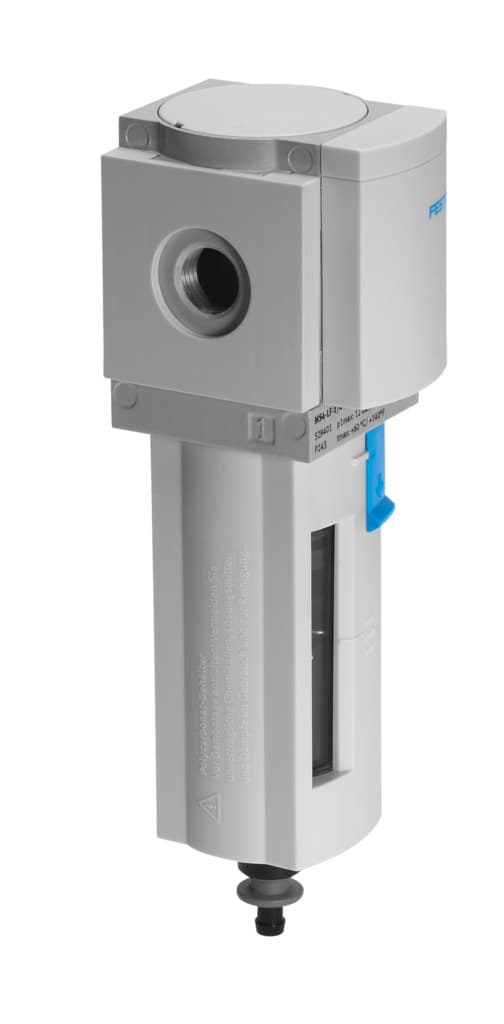

ms6n-lf-3/8-eum
Selling Points
- 1The Festo MS6N-LF-3/8-EUM pneumatic filter ensures high-quality air filtration with a 40 microns filtration grade, removing impurities, rust, and condensate from compressed air.
- 2Available in various connections including ¼ NPT, y NPT, ½ NPT, and ¾ NPT, making it suitable for a wide range of pneumatic system applications.
- 3Offers manual, semiautomatic, and fully automatic drain options, ensuring easy maintenance and optimal performance.
- 4Designed for high flow rates, from 70.6 to 144.7 scfm, making it an ideal choice for demanding pneumatic systems.
- 5Built with durable materials such as die-cast aluminum and polycarbonate/polyamide, ensuring long-lasting performance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Mounting position | Vertical +/- 5° | Grade of filtration | 40μm |
Condensate drain | Manually rotating | Structural design | Sinter filter with centrifugal separator |
Bowl guard | Integrated as metal bowl guard | Degree of condensate separation | 75% |
Symbol | 00991519 | Operating pressure | 0bar 20bar |
Standard nominal flow rate | 3800l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Pore size | 40μm |
Product weight | 820g | Type of mounting | Optionally: Line installation With accessories |
Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 2 | 3/8 NPT |
Note on materials | RoHS-compliant | Seals material | NBR |
Compressed air filter material | PE | Housing material | Die-cast aluminum |
Material of bowl | Wrought aluminum alloy | Separating disc material | POM |
Manufacturer ID | 531557 |
Specifications may be subject to change without notice
