Product Model

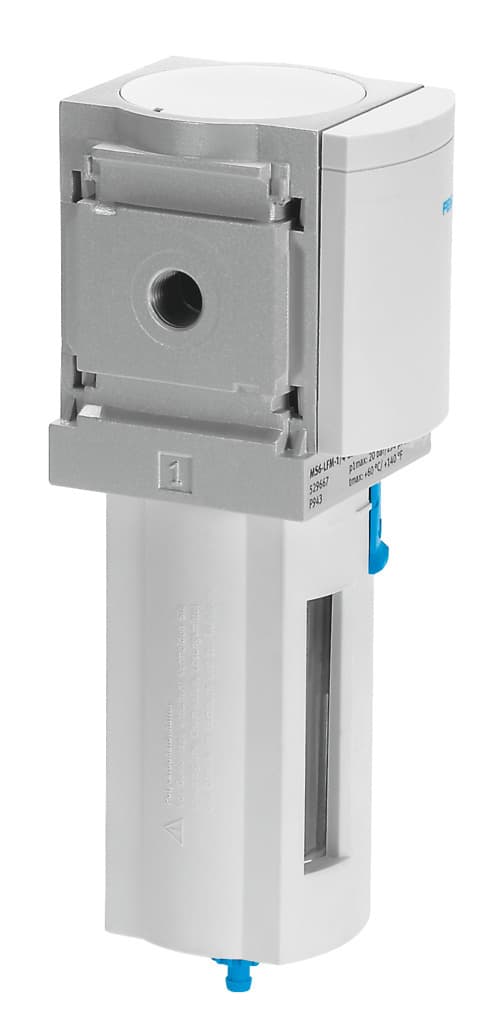

ms6n-lfm
Selling Points
- 1The Festo MS6N-LFM micro filter offers exceptional air purity with a filtration grade of 0.01 µm, ensuring clean and reliable compressed air for various industrial applications.
- 2This filter features a fully automatic condensate drain, which enhances its efficiency and reduces downtime in industrial settings.
- 3The MS6N-LFM is constructed with durable materials, including die-cast aluminum and borosilicate fiber filters, ensuring long-lasting performance and resistance to corrosion.
- 4The filter is designed for vertical installation with a mounting position tolerance of ±5°, making it versatile for different pneumatic system configurations.
- 5The MS6N-LFM is compliant with ISO 8573-1:2010 standards for air purity classes, ensuring it meets stringent industrial cleanliness requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 6 |
Structural design | Fiber filter | Grade of filtration | 0.01μm 1μm |
Condensate drain | Fully automatic Manual, non-detenting Manually rotating Semi-automatic | Operating pressure | 0bar 20bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] Inert gas | Air quality class at the output | Compressed air as per ISO?8573-1:2010 [3:4:2] Compressed air as per ISO?8573-1:2010 [5:4:3] |
Bowl guard | Plastic bowl guard Integrated as metal bowl guard | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | For use in the food industry | See supplementary material information |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Differential pressure display | Visual display With pressure sensor | Certification | c UL us - Recognized (OL) |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Vertical +/- 5° |
Housing material | Die-cast aluminum | Compressed air filter material | Borosilicate fiber |
Seals material | NBR | Note on materials | RoHS-compliant |
Manufacturer ID | 527671 |
Specifications may be subject to change without notice
