Product Model
ms6n-lfm-1/2-brm-z
Selling Points

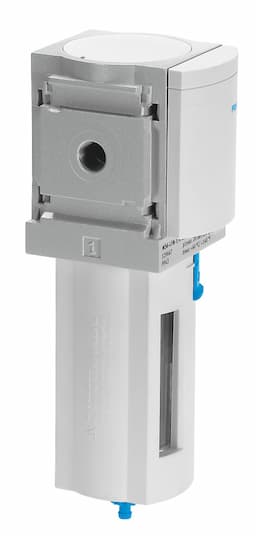

- 1The Festo MS6N-LFM-1/2-BRM-Z pneumatic air filter is designed to provide high-efficiency air purification, ensuring clean compressed air for your industrial applications.
- 2With a grid size of 62mm, this filter is compact and easy to integrate into your existing pneumatic systems, making it ideal for space-constrained environments.
- 3The MS6N-LFM-1/2-BRM-Z offers vertical +/-5° mounting, providing flexibility in installation and ensuring a secure fit in various industrial settings.
- 4This filter supports a standard flow rate of 140L/min, making it suitable for applications requiring high air flow while maintaining optimal air purity.
- 5Built with a plastic bowl and basket, the MS6N-LFM-1/2-BRM-Z is durable and resistant to wear and tear, ensuring long-lasting performance in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 6 |
Structural design | Fiber filter | Grade of filtration | 1μm |
Condensate drain | Manually rotating | Symbol | 00991519 |
Operating pressure | 0bar 20bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] Inert gas |
Air quality class at the output | Compressed air as per ISO?8573-1:2010 [5:4:3] | Max. standard flow rate for air quality class | 950l/min |
Min. standard flow rate for air quality class | 140l/min | Filter efficiency | 99.99% |
Max. condensate volume | 38ml | Bowl guard | Plastic bowl guard |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Storage temperature | -10°C 60°C |
Filter efficiency, fine particles | 99% | Residual oil content | 0.5mg/m3 |
Filter efficiency, oil aerosol | 90% | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Vertical +/- 5° | Pneumatic connection 1 | 1/2 NPT |
Pneumatic connection 2 | 1/2 NPT | Housing material | Die-cast aluminum |
Compressed air filter material | Borosilicate fiber | Material of bowl | PC |
Seals material | NBR | Note on materials | RoHS-compliant |
Product weight | 600g | Manufacturer ID | 531852 |
Specifications may be subject to change without notice
