Product Model

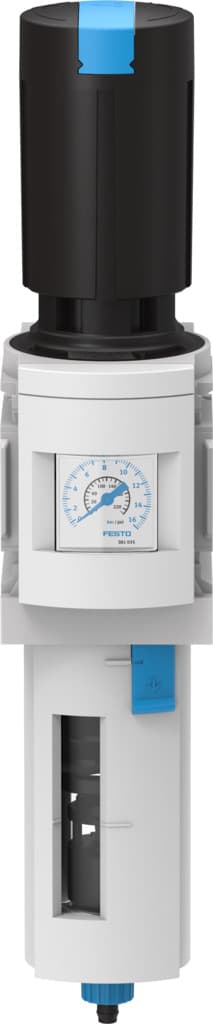

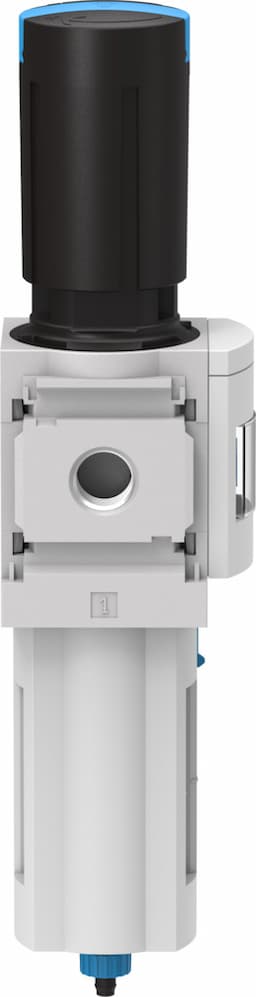

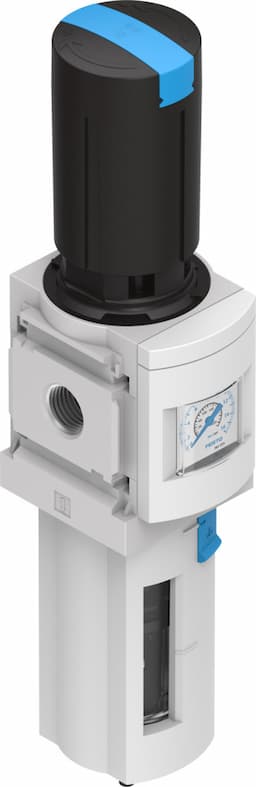

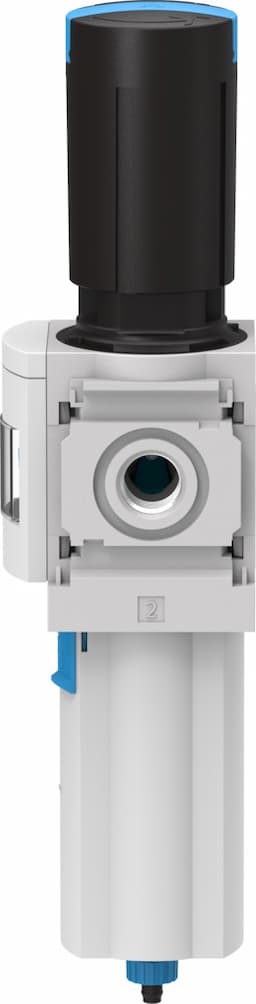

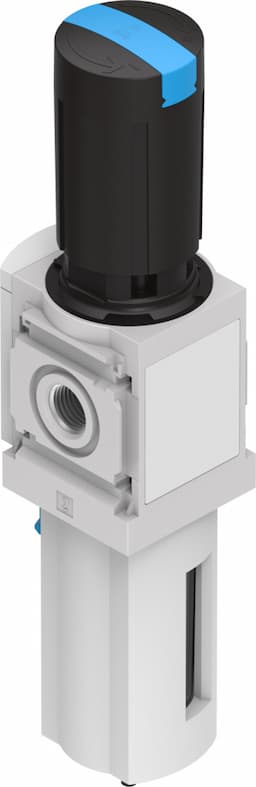

ms6n-lfr-1/2-d7-crv-as
Selling Points
- 1The MS6N-LFR-1/2-D7-CRV-AS offers high flow rates, making it suitable for applications requiring efficient air supply and pressure regulation.
- 2This pressure regulator boasts good control characteristics, ensuring precise pressure regulation and minimal hysteresis.
- 3With a corrosion resistance class 2 according to Festo standard 940 070, the MS6N-LFR-1/2-D7-CRV-AS is designed to withstand normal industrial environments and media like coolants or lubricating agents.
- 4The regulator is modular, allowing for in-line or panel mounting, providing flexibility in installation and integration with other components.
- 5The MS6N-LFR-1/2-D7-CRV-AS can be equipped with an optional pressure sensor, enhancing monitoring capabilities and operational efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 5μm | Condensate drain | Fully automatic Manual, non-detenting |
Structural design | Filter regulator with pressure gauge | Max. condensate volume | 38ml |
Controller function | Outlet pressure constant With secondary exhausting | Bowl guard | Plastic bowl guard |
Degree of condensate separation | 75% | Symbol | 00991587 |
Pressure gauge | with pressure gauge | Operating pressure | 2bar 12bar |
Pressure regulation range | 0.5bar 12bar | Max. pressure hysteresis | 3.625psi |
Standard nominal flow rate | 4000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Pore size | 5μm |
Product weight | 875g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | 1/2 NPT | Pneumatic connection 2 | 1/2 NPT |
Note on materials | RoHS-compliant | Material of operator panel | PA POM |
Seals material | NBR | Compressed air filter material | PE |
Housing material | Die-cast aluminum | Diaphragm material | NBR |
Material of bowl | PC | Separating disc material | POM |
Manufacturer ID | 531288 |
Specifications may be subject to change without notice
