Product Model
ms6n-lr-3/8-d5-as
Selling Points

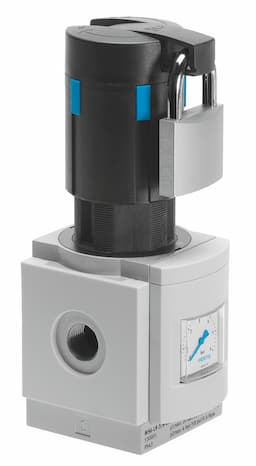

- 1The Festo MS6N-LR-3/8-D5-AS pressure regulator offers high flow rates of up to 5,500 liters per minute, ensuring efficient pneumatic control in various industrial applications.
- 2This pressure regulator features a lockable rotary knob with accessories, providing secure control over the set values and preventing accidental adjustments.
- 3The MS6N-LR-3/8-D5-AS is designed to maintain a constant working pressure, independent of primary side pressure fluctuations, ensuring reliable operation.
- 4With a working pressure range of 0.8 to 20 bar and a pressure regulation range of 0.3 to 4 bar, this regulator is versatile for various pneumatic systems.
- 5The product is constructed with materials that meet RoHS standards and has a corrosion resistance classification of CRC 2, ensuring durability in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Any |
Structural design | Pressure regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting |
Symbol | 00991558 | Pressure gauge | with pressure gauge |
Operating pressure | 0.8bar 20bar | Pressure regulation range | 0.3bar 4bar |
Max. pressure hysteresis | 0.25bar | Standard nominal flow rate | 5500l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 730g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 2 | 3/8 NPT |
Note on materials | RoHS-compliant | Material of operator panel | PA POM |
Seals material | NBR | Housing material | Die-cast aluminum |
Diaphragm material | NBR | Separating disc material | POM |
Manufacturer ID | 531444 |
Specifications may be subject to change without notice
