Product Model

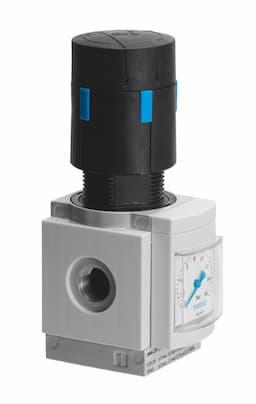

ms6n-lrb-1/2-d7-as
Selling Points
- 1The Festo MS6N-LRB-1/2-D7-AS pressure regulator offers excellent control characteristics with low hysteresis, ensuring precise air pressure regulation in industrial applications.
- 2This pressure regulator features primary pressure compensation, which helps maintain consistent output pressure despite changes in input pressure, enhancing system stability.
- 3The MS6N-LRB-1/2-D7-AS is designed for high flow rates with minimal pressure drop, making it suitable for applications requiring efficient air flow management.
- 4Constructed from durable materials, including die-cast aluminum for the body and polyamide/polyacetate for the regulating knob, this pressure regulator ensures long-lasting performance in harsh industrial environments.
- 5The product is compatible with a wide range of operating conditions, including ambient temperatures from 14°F to 140°F and medium temperatures from 14°F to 140°F, making it versatile for various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Any |
Structural design | Directly controlled diaphragm regulator with continuous compressed air supply | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting |
Symbol | 00995309 | Pressure gauge | with pressure gauge |
Operating pressure | 0.8bar 20bar | Pressure regulation range | 0.5bar 12bar |
Max. pressure hysteresis | 0.25bar | Standard nominal flow rate | 5500l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 747g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | 1/2 NPT | Pneumatic connection 2 | 1/2 NPT |
Note on materials | RoHS-compliant | Material of operator panel | PA POM |
Seals material | NBR | Housing material | Die-cast aluminum |
Diaphragm material | NBR | Manufacturer ID | 531822 |
Specifications may be subject to change without notice
