Product Model

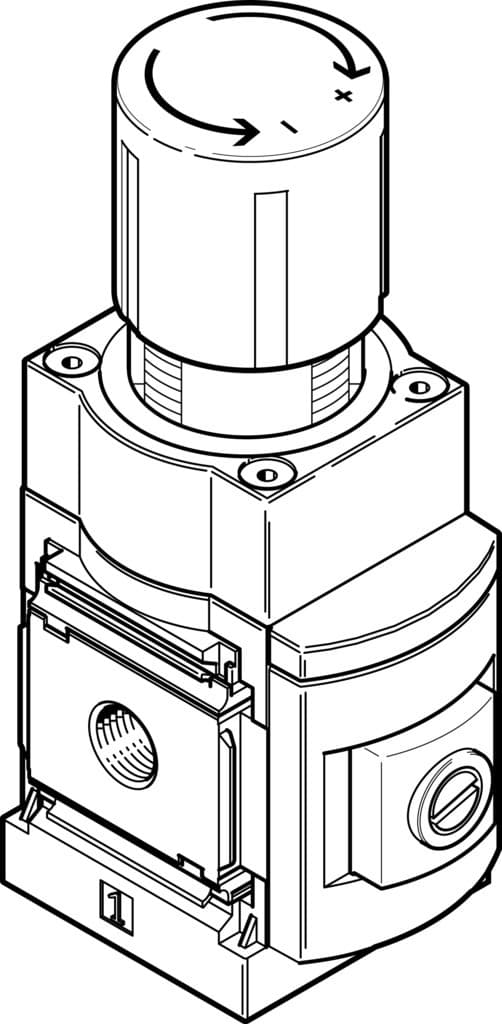

ms6n-lrp-1/2-d5-a8-z
Selling Points
- 1The MS6N-LRP-1/2-D5-A8-Z offers precise pressure regulation, ensuring consistent and reliable air supply in industrial applications.
- 2This pressure regulator operates within a broad range of pressures, from 0.3 to 4 bar, making it versatile for various industrial settings.
- 3With minimal hysteresis, the MS6N-LRP-1/2-D5-A8-Z provides stable and consistent pressure control, reducing the risk of fluctuations in the system.
- 4The unit is available with an optional pressure sensor, enhancing monitoring capabilities and ensuring real-time pressure readings.
- 5Built with durable materials, including die-cast aluminum for the body and polyamide/polyacetate for the regulating knob, this regulator is designed to withstand harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with detent | Mounting position | Any |
Structural design | Pilot-controlled precision diaphragm regulator | Controller function | Outlet pressure constant With secondary exhausting |
Symbol | 00991973 | Pressure gauge | G1/8 prepared |
Operating pressure | 1bar 14bar | Pressure regulation range | 0.1bar 4bar |
Max. pressure hysteresis | 0.02bar | Flow rate of secondary venting | 650l/min |
Standard nominal flow rate | 3000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Ester oil < 0.1mg/m3, according to ISO 8573-1:2010 [-:-:2] Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 850g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | 1/2 NPT | Pneumatic connection 2 | 1/2 NPT |
Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Aluminum |
Manufacturer ID | 538050 |
Specifications may be subject to change without notice
