Product Model

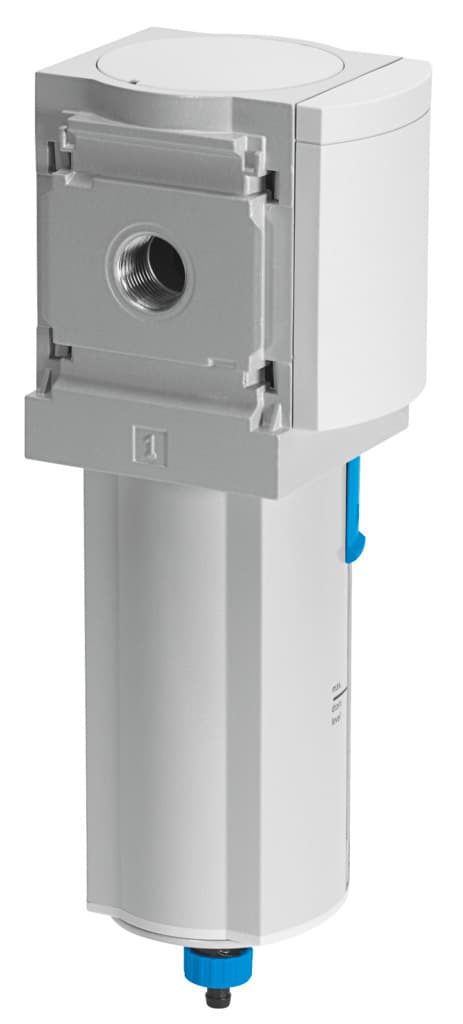

ms6n-lws-3/8-u-v
Selling Points
- 1Efficient condensate removal with a centrifugal separator.
- 2Fully automatic design for minimal maintenance.
- 3Operating pressure range of 2 to 12 bar.
- 4High condensate separation efficiency of 99%.
- 5Compatible with compressed air to ISO 8573-1:2010 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Mounting position | Vertical +/- 5° | Condensate drain | Fully automatic |
Structural design | Centrifugal separator | Max. condensate volume | 38ml |
Bowl guard | Integrated as metal bowl guard | Degree of condensate separation | 99% |
Symbol | 00992244 | Operating pressure | 2bar 12bar |
Standard nominal flow rate | 3500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:7:4] |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 820g | Type of mounting | Optionally: Line installation With accessories |
Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 2 | 3/8 NPT |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
Inspection window material | PA | Manufacturer ID | 564872 |
Specifications may be subject to change without notice
