Product Model
ms6(n)-sv
Selling Points

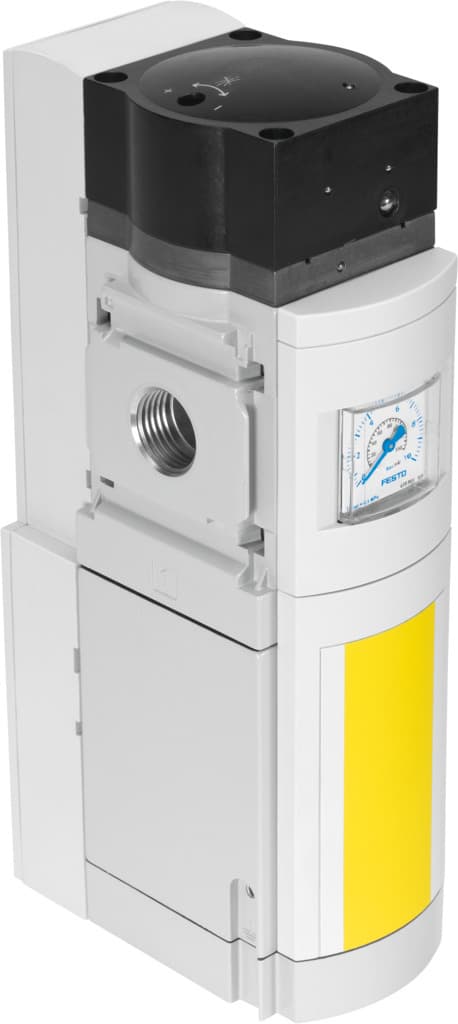

- 1The Festo MS6(N)-SV is a soft-start/quick exhaust valve designed for safe venting and pressure building in pneumatic systems, ensuring reliable operation and efficient control.
- 2This valve features adjustable pressure switching points and flow rates, allowing for precise control over pneumatic piping systems and terminals.
- 3With its robust construction, the MS6(N)-SV is built to withstand various environmental conditions, including shock and vibration tests, ensuring durability in demanding applications.
- 4The valve is equipped with a multi-pin plug socket for secure enable signals, enhancing its safety features and compatibility with various control systems.
- 5The Festo MS6(N)-SV meets the requirements of EN ISO 13849-1 and 2, guaranteeing a performance level e and ensuring high safety standards in pneumatic safety functions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 6 |
Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
Note on forced dynamization | Switching frequency at least once a month | Structural design | Piston gate valve Piston seat |
Actuation type | Electrical | Pilot air supply port | Internal |
Sealing principle | Soft | Exhaust air function | Without flow control option |
Manual override | None At pilot control air solenoid valve: non-detenting, at soft start/quick exhaust valve: detenting, self-resetting At pilot control air solenoid valve: non-detenting, detenting, at soft start/quick exhaust valve: detenting, self-resetting | Reset method | Mechanical spring |
Type of control | Pilot-controlled | Valve function | 3/2, closed, monostable Pressure build-up function |
Operating pressure | 3bar 10bar | Pressure gauge | G1/4 prepared G1/8 prepared Red-green scale with pressure sensor with pressure sensor with LCD display with pressure sensor with switching indicator with pressure gauge |
Standard nominal flow rate | 4300l/min 5700l/min | Duty cycle | 100% |
Signal status display | LED Floating contact Switching outputs Via AS-i | Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA 24 V DC: 1.5 W 24 V DC: 1.8 W |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 With plug socket |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Storage temperature | -10°C 60°C | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Certification | RCM compliance mark c UL us - Recognized (OL) |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU low voltage directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions | Certificate issuing authority | IFA 1001180 Intertek UK-MCR-0086 German Technical Control Board (TüV) 44 799 12 556236 000 |
For use in the food industry | See supplementary material information | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Any | Housing material | Die-cast aluminum |
Seals material | NBR | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 548713 |
Specifications may be subject to change without notice
