Product Model

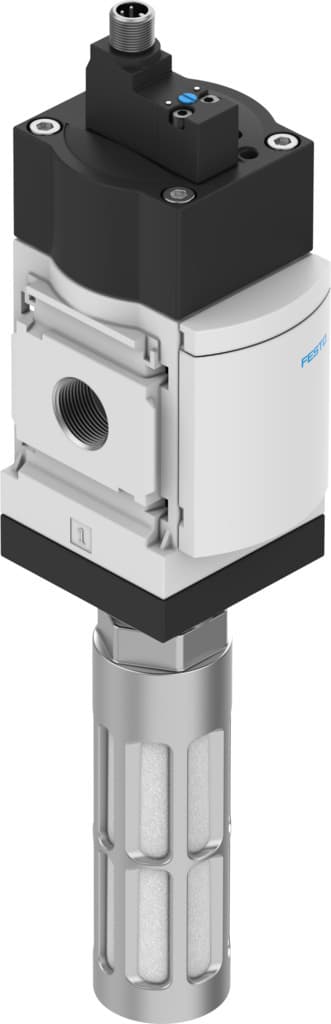

ms6-sv-1/2-c-10v24p-s
Selling Points
- 1High Flow Rate: Achieves a standard nominal flow rate of 5700 l/min for efficient compressed air management.
- 2Adjustable Pressure Switchover: Allows for customizable pressure settings to suit various application needs.
- 3Compact Design: Features a grid dimension of 62 mm, making it suitable for restricted spaces.
- 4Safety Compliance: Meets EN ISO 13849-1 standards, ensuring medium safety requirements up to controller category 1.
- 5Optional Pressure Sensor: Includes an optional pressure sensor for precise monitoring and control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 6 |
Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
Performance Level (PL) | Exhaust/category 1, performance level c Avoidance of unexpected start-up (pressurization)/category 1, performance level c | Note on forced dynamization | Switching frequency at least once a month |
Structural design | Piston gate valve | Lap | Overlap |
Actuation type | Electrical | Pilot air supply port | Internal |
Sealing principle | Soft | Exhaust air function | Without flow control option |
Manual override | At pilot control air solenoid valve: non-detenting, detenting, at soft start/quick exhaust valve: detenting, self-resetting | Reset method | Mechanical spring |
Type of control | Pilot-controlled | Symbol | 00995813 |
Valve function | 3/2, closed, monostable Pressure build-up function | Operating pressure | 3bar 10bar |
C value | 23.2l/sbar | b-value | 0.4 |
Standard nominal flow rate | 5700l/min | Standard flow rate exhaust 6-> 0 bar | 7600l/min |
Switching time off | 65ms | On switching time | 370ms |
Duty cycle | 100% | Coil characteristics | 24 V DC: 1.8 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 With plug socket | Temperature of medium | 0°C 60°C |
Ambient temperature | 0°C 60°C | Storage temperature | -10°C 60°C |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions |
For use in the food industry | See supplementary material information | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Any | Product weight | 1006g |
Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
Pneumatic connection 3 | G3/4 | Electrical connection | 4-pin as per IEC 61076-2-101 |
Housing material | Die-cast aluminum | Seals material | NBR |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 578769 |
Specifications may be subject to change without notice
