Product Model

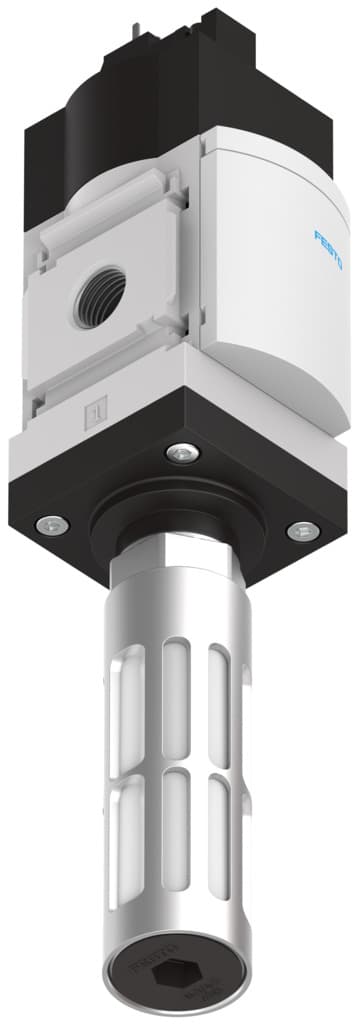

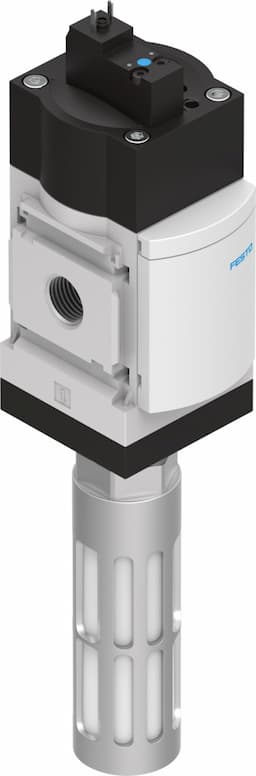

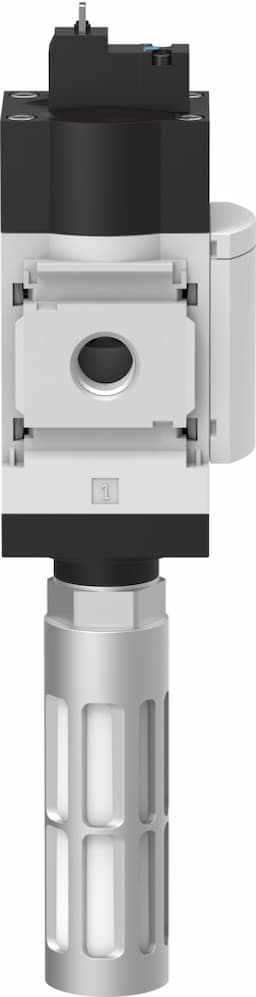

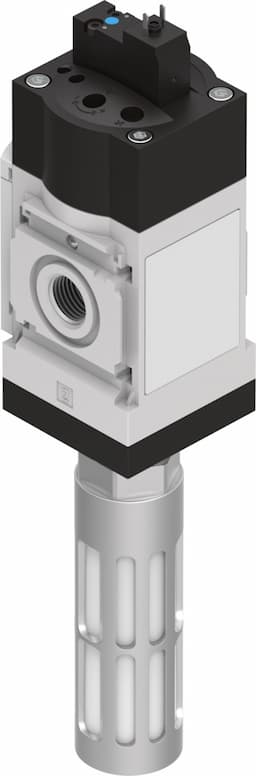

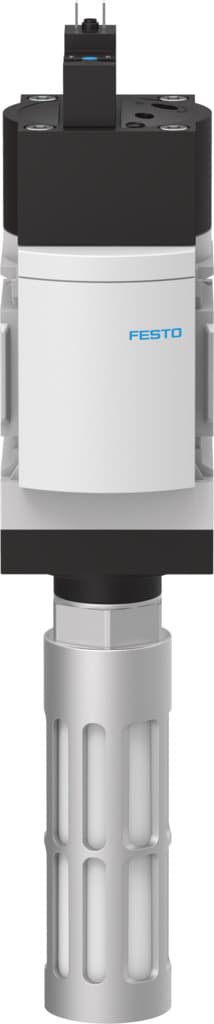

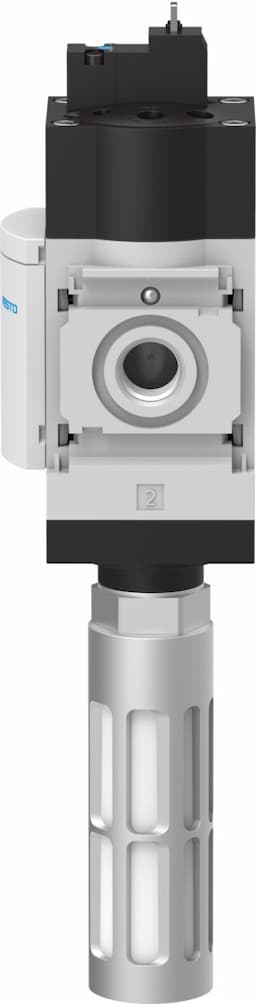

ms6-sv-1/2-c-10v24-s
Selling Points
- 1High Flow Rates: Achieve high volumetric flow rates for pressurization and venting applications.
- 2Electrical Actuation: Control the valve with ease using a 2-pin plug (pattern type C) and 24Vdc.
- 3Robust Construction: Built with die-cast aluminum housing, NBR seals, and high-alloy stainless steel piston rod.
- 4Operational Safety: Suitable for applications requiring medium safety up to controller category 1.
- 5Compact Design: In-line installation with a compact size of 62mm grid dimension, ensuring efficient use of space.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 6 |
Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
Performance Level (PL) | Exhaust/category 1, performance level c Avoidance of unexpected start-up (pressurization)/category 1, performance level c | Note on forced dynamization | Switching frequency at least once a month |
Structural design | Piston gate valve | Lap | Overlap |
Actuation type | Electrical | Pilot air supply port | Internal |
Sealing principle | Soft | Exhaust air function | Without flow control option |
Manual override | At pilot control air solenoid valve: non-detenting, at soft start/quick exhaust valve: detenting, self-resetting | Reset method | Mechanical spring |
Type of control | Pilot-controlled | Symbol | 00995813 |
Valve function | 3/2, closed, monostable Pressure build-up function | Operating pressure | 3bar 10bar |
C value | 23.2l/sbar | b-value | 0.4 |
Standard nominal flow rate | 5700l/min | Standard flow rate exhaust 6-> 0 bar | 7600l/min |
Switching time off | 65ms | On switching time | 370ms |
Duty cycle | 100% | Coil characteristics | 24 V DC: 1.8 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 With plug socket | Temperature of medium | 0°C 60°C |
Ambient temperature | 0°C 60°C | Storage temperature | -10°C 60°C |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions |
For use in the food industry | See supplementary material information | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Any | Product weight | 1006g |
Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
Pneumatic connection 3 | G3/4 | Electrical connection | 2-pin Form C Plug as per EN 175301-803 |
Housing material | Die-cast aluminum | Seals material | NBR |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 8001469 |
Specifications may be subject to change without notice
