Product Model

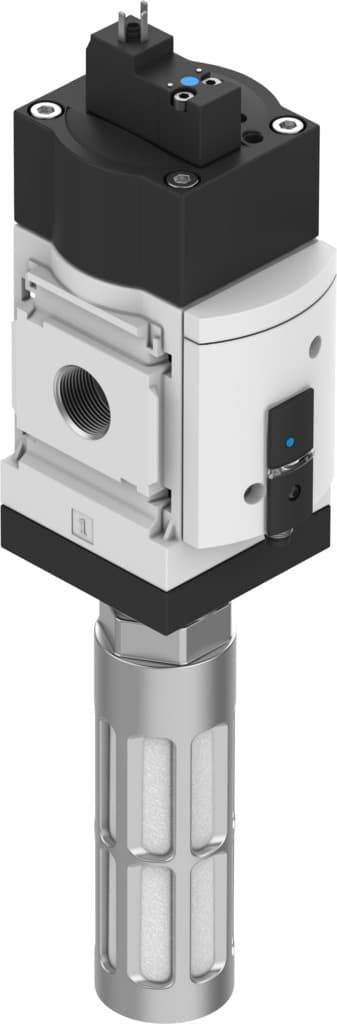

ms6-sv-1/2-c-10v24-s-ad7

Selling Points
- 1The Festo MS6-SV-1/2-C-10V24-S-AD7 is a high-quality automation component designed for precise control and reliability in various industrial applications. Its robust construction ensures long-lasting performance.
- 2This component features advanced communication capabilities, including standardized IO-Link technology, which simplifies communication with sensors and actuators, enhancing overall system efficiency.
- 3The MS6-SV-1/2-C-10V24-S-AD7 is part of Festo's extensive range of pneumatic and electrical components, offering a one-stop solution for automation needs. It can be easily integrated into complex systems.
- 4With its compact design and versatile configuration options, this component is ideal for applications requiring precise control and minimal material requirements. It supports point-to-point connections without complex wiring.
- 5The Festo MS6-SV-1/2-C-10V24-S-AD7 is backed by Festo's commitment to quality and customer support. It is part of a comprehensive product range that includes extensive documentation and training resources to ensure seamless integration and operation.
- 6 - This document provides detailed information on Festo's products and services, including the specifications and benefits of the MS6-SV-1/2-C-10V24-S-AD7.
- 7 - The Festo Core Range includes a selection of the most important functions and products that can be used to solve the majority of automation tasks, including the MS6-SV-1/2-C-10V24-S-AD7.
- 8 - This resource provides detailed information on how Festo's products can be used in specific industries, including machine tools, which may include the MS6-SV-1/2-C-10V24-S-AD7.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Series | MS | Size | 6 |
Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
Performance Level (PL) | Exhaust/category 1, performance level c Avoidance of unexpected start-up (pressurization)/category 1, performance level c | Note on forced dynamization | Switching frequency at least once a month |
Structural design | Piston gate valve | Lap | Overlap |
Actuation type | Electrical | Pilot air supply port | Internal |
Sealing principle | Soft | Exhaust air function | Without flow control option |
Manual override | At pilot control air solenoid valve: non-detenting, at soft start/quick exhaust valve: detenting, self-resetting | Reset method | Mechanical spring |
Type of control | Pilot-controlled | Symbol | 00995813 |
Valve function | 3/2, closed, monostable Pressure build-up function | Operating pressure | 3bar 10bar |
Pressure gauge | with pressure sensor with switching indicator | C value | 23.2l/sbar |
b-value | 0.4 | Standard nominal flow rate | 5700l/min |
Standard flow rate exhaust 6-> 0 bar | 7600l/min | Switching time off | 65ms |
On switching time | 370ms | Duty cycle | 100% |
Coil characteristics | 24 V DC: 1.8 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 With plug socket |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions |
For use in the food industry | See supplementary material information | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Any | Product weight | 1006g |
Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
Pneumatic connection 3 | G3/4 | Electrical connection | 2-pin Form C Plug as per EN 175301-803 |
Housing material | Die-cast aluminum | Seals material | NBR |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 8172785 |
Specifications may be subject to change without notice
