Product Model

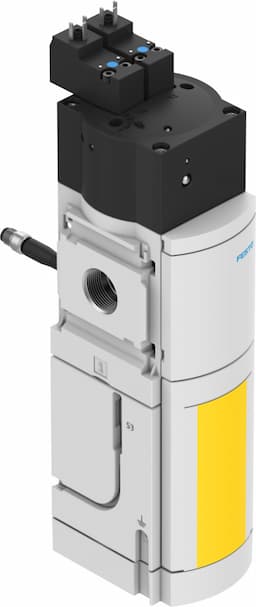

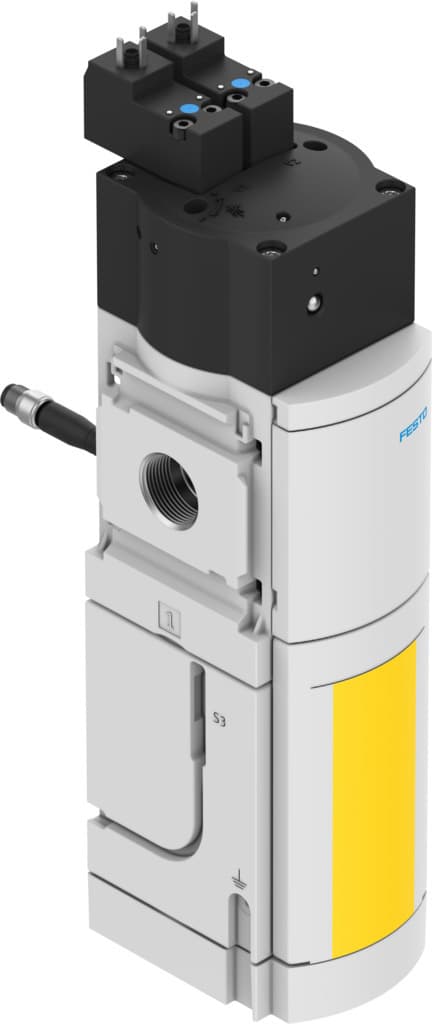

ms6-sv-1/2-d-10v24-2m8
Selling Points
- 1Equipped with exhausting and protection against unexpected start-up functions, ensuring SIL 3 compliance.
- 2Soft-start and quick exhaust capabilities minimize pressure surges and optimize system performance.
- 3Measuring 62 mm in grid dimension, ideal for space-constrained applications.
- 4Internal pilot air supply and soft sealing principle for reliable operation.
- 5Prevents unexpected start-up (pressurization) and exhausts air quickly, reducing risk of damage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 6 |
Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
Safety integrity level (SIL) | Exhaust/SIL 3 Avoidance of unexpected start-up (pressurization)/SIL 3 | Performance Level (PL) | Exhaust/category 3, performance level d Avoidance of unexpected start-up (pressurization)/category 3, performance level d |
Note on forced dynamization | Switching frequency at least once a month | Structural design | Piston seat |
Lap | Underlap | Actuation type | Electrical |
Pilot air supply port | Internal | Sealing principle | Soft |
Exhaust air function | Without flow control option | Position sensing principle | Piston magnet principle |
Conforms to standard | DIN EN ISO 13849-1 DIN EN ISO 13849-2 | Manual override | None |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00995704 | Valve function | 3/2, closed, monostable Pressure build-up function |
Operating pressure | 3.5bar 10bar | C value | 19.3l/sbar |
b-value | 0.21 | Standard nominal flow rate | 4300l/min |
Standard flow rate exhaust 6-> 0 bar | 9000l/min | Max. switching frequency | 0.5Hz |
Switching time off | 40ms | On switching time | 130ms |
Duty cycle | 100% | Signal status display | LED Switching outputs |
Coil characteristics | 24 V DC: 1.8 W | Nominal operating voltage DC | 24V |
Permissible voltage fluctuations | +10 %/-15 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 With plug socket | Temperature of medium | -10°C 50°C |
Ambient temperature | -10°C 50°C | Storage temperature | -10°C 50°C |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Certification | RCM compliance mark | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Product weight | 1900g | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1 |
Electrical connection | 2-pin 2x plugs Form C as per EN 175301-803 | Electrical connection, proximity sensor | 2x cables with plugs 3-pin M8 Rotatable thread |
Housing material | Die-cast aluminum | Seals material | NBR |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 8038489 |
Specifications may be subject to change without notice
