Product Model
ms6-sv-1/2-d-10v24p-2m12-so-rg
Selling Points

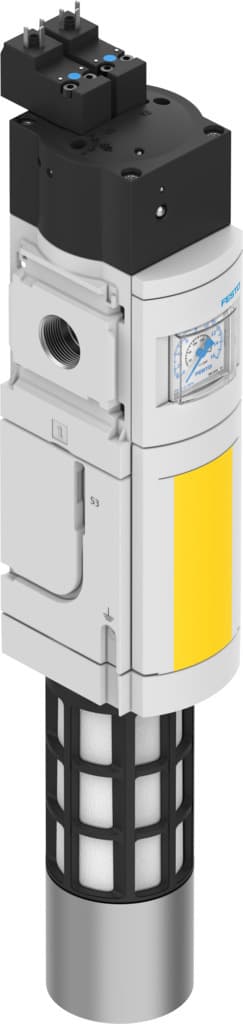

- 1The Festo MS6-SV-1/2-D-10V24P-2M12-SO-rg is a soft start/quick exhaust valve designed for precise control in pneumatic systems, ensuring smooth and efficient operation.
- 2This valve features a maximum achievable performance level of category 4, in accordance with EN ISO 13849-1, ensuring high safety standards.
- 3The valve includes an LED display for power and error indicators, providing real-time monitoring of its status.
- 4It supports various connection sizes (G1/2, G1/4, G3/8, etc.) and comes with a multi-pin plug socket for secure enable signals.
- 5The valve is compatible with compressed air and inert gases, operating within a temperature range of -10°C to +50°C, making it suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 6 |
Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
Safety integrity level (SIL) | Exhaust/SIL 3 Avoidance of unexpected start-up (pressurization)/SIL 3 | Performance Level (PL) | Exhaust/category 3, performance level d Avoidance of unexpected start-up (pressurization)/category 3, performance level d |
Note on forced dynamization | Switching frequency at least once a month | Structural design | Piston seat |
Lap | Underlap | Actuation type | Electrical |
Pilot air supply port | Internal | Sealing principle | Soft |
Exhaust air function | Without flow control option | Position sensing principle | Piston magnet principle |
Conforms to standard | DIN EN ISO 13849-1 DIN EN ISO 13849-2 | Manual override | None |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00995704 | Valve function | 3/2, closed, monostable Pressure build-up function |
Operating pressure | 3.5bar 10bar | Pressure gauge | Red-green scale with pressure gauge |
C value | 19.3l/sbar | b-value | 0.21 |
Standard nominal flow rate | 4300l/min | Standard flow rate exhaust 6-> 0 bar | 9000l/min |
Max. switching frequency | 0.5Hz | Switching time off | 40ms |
On switching time | 130ms | Duty cycle | 100% |
Signal status display | LED Switching outputs | Coil characteristics | 24 V DC: 1.8 W |
Nominal operating voltage DC | 24V | Permissible voltage fluctuations | +10 %/-15 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Noise level | 75dB(A) |
Degree of protection | IP65 With plug socket | Temperature of medium | -10°C 50°C |
Ambient temperature | -10°C 50°C | Storage temperature | -10°C 50°C |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Certification | RCM compliance mark | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Product weight | 2110g | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1 |
Electrical connection | 4-pin as per IEC 61076-2-101 | Electrical connection, proximity sensor | 2x cables with plugs 3-pin M12 Rotatable thread |
Cable length | 0.3m | Housing material | Die-cast aluminum |
Seals material | NBR | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8165924 |
Specifications may be subject to change without notice
