Product Model

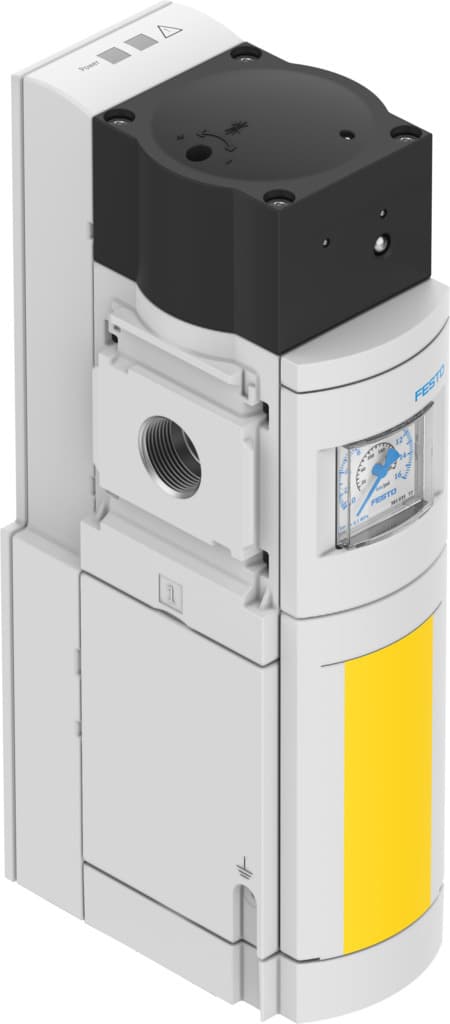

ms6-sv-1/2-e-10v24-ag
Selling Points
- 1The Festo MS6-SV-1/2-E-10V24-AG is a high-performance pneumatic valve designed for precision and reliability in industrial automation. It features a soft-start/quick exhaust function, making it ideal for applications requiring controlled airflow.
- 2This valve is electrically actuated, ensuring precise control over pneumatic systems. It supports a wide range of connection sizes and is compatible with various Festo accessories, including pressure sensors and adapters.
- 3The MS6-SV-1/2-E-10V24-AG operates within a temperature range of -10°C to +50°C and can handle operating pressures between 3.5 and 10 bar. It is suitable for use with compressed air and inert gases.
- 4The valve includes an integrated pressure gauge and is designed to meet the performance level of category 4 according to EN ISO 13849-1. It also features a self-monitoring safety device, ensuring reliable operation.
- 5The Festo MS6-SV-1/2-E-10V24-AG offers a range of optional features, including pressure sensors with display, flow control screws for soft start functions, and pre-assembled earthing straps for enhanced safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 6 |
Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
Safety integrity level (SIL) | Exhaust/SIL 3 Avoidance of unexpected start-up (pressurization)/SIL 3 | Performance Level (PL) | Exhaust/up to category 4, performance level e Avoidance of unexpected start-up (pressurization)/up to category 4, performance level e |
Note on forced dynamization | Switching frequency at least once a month | Structural design | Piston seat |
Lap | Underlap | Actuation type | Electrical |
Pilot air supply port | Internal | Sealing principle | Soft |
Exhaust air function | Without flow control option | Position sensing principle | Piston magnet principle |
Conforms to standard | DIN EN ISO 13849-1 | Manual override | None |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00995704 | Valve function | 3/2, closed, monostable Pressure build-up function |
Operating pressure | 3.5bar 10bar | Pressure gauge | with pressure gauge |
C value | 19.3l/sbar | b-value | 0.21 |
Standard nominal flow rate | 4300l/min | Standard flow rate exhaust 6-> 0 bar | 9000l/min |
Max. switching frequency | 0.5Hz | Switching time off | 40ms |
On switching time | 130ms | Duty cycle | 100% |
Signal status display | LED Floating contact | Nominal operating voltage DC | 24V |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 With plug socket | Temperature of medium | -10°C 50°C |
Ambient temperature | -10°C 50°C | Storage temperature | -10°C 50°C |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Certification | RCM compliance mark | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions |
Certificate issuing authority | IFA 1001180 Intertek UK-MCR-0086 | For use in the food industry | See supplementary material information |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Product weight | 2000g | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1 |
Electrical connection | 9-pin Sub-D | Housing material | Die-cast aluminum |
Seals material | NBR | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 548715 |
Specifications may be subject to change without notice
