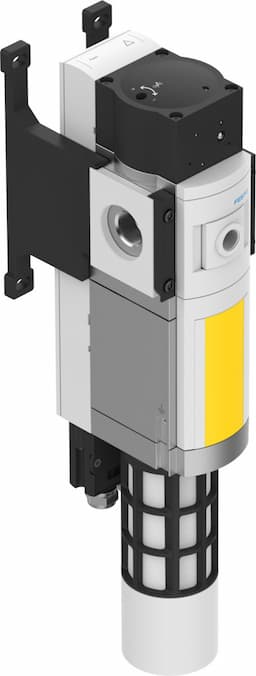

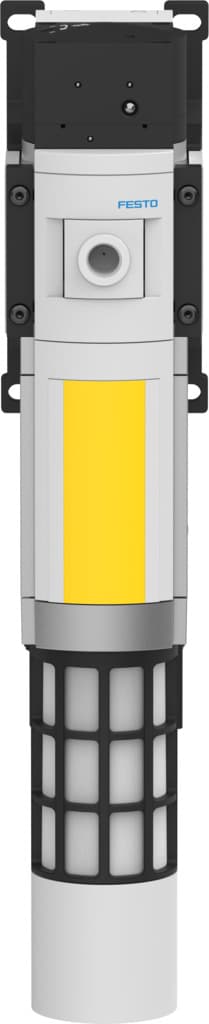

Product Model
ms6-sv-1/2-e-10v24-so-a4-mp1-wpb-ul1
Selling Points
- 1Gradual pressurization ensures safe and controlled system operation.
- 2Rapidly exhausts system components, reducing downtime and improving efficiency.
- 3Supports high volumetric flow rates for pressurization and venting applications.
- 4Sized at Female thread G1/2, ideal for restricted spaces.
- 5Meets EN ISO 13849-1 category 4 performance level with self-monitoring and safety device compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 6 |
Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
Safety integrity level (SIL) | Exhaust/SIL 3 Avoidance of unexpected start-up (pressurization)/SIL 3 | Performance Level (PL) | Exhaust/up to category 4, performance level e Avoidance of unexpected start-up (pressurization)/up to category 4, performance level e |
Note on forced dynamization | Switching frequency at least once a month | Structural design | Piston seat |
Lap | Underlap | Actuation type | Electrical |
Pilot air supply port | Internal | Sealing principle | Soft |
Exhaust air function | Without flow control option | Position sensing principle | Piston magnet principle |
Conforms to standard | DIN EN ISO 13849-1 | Manual override | None |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00995704 | Valve function | 3/2, closed, monostable Pressure build-up function |
Operating pressure | 3.5bar 10bar | Pressure gauge | G1/4 prepared |
C value | 19.3l/sbar | b-value | 0.21 |
Standard nominal flow rate | 4300l/min | Standard flow rate exhaust 6-> 0 bar | 9000l/min |
Max. switching frequency | 0.5Hz | Switching time off | 40ms |
On switching time | 130ms | Duty cycle | 100% |
Signal status display | LED Floating contact | Nominal operating voltage DC | 24V |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Noise level | 75dB(A) | Degree of protection | IP65 With plug socket |
Temperature of medium | -10°C 50°C | Ambient temperature | -10°C 50°C |
Storage temperature | -10°C 50°C | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Certification | c UL us - Recognized (OL) |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions | Certificate issuing authority | IFA 1001180 Intertek UK-MCR-0086 |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Product weight | 2210g | Pressure gauge connection | G1/4 |
Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
Pneumatic connection 3 | G1 | Electrical connection | 9-pin Sub-D |
Housing material | Die-cast aluminum | Seals material | NBR |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 611497 |
Specifications may be subject to change without notice
