Product Model

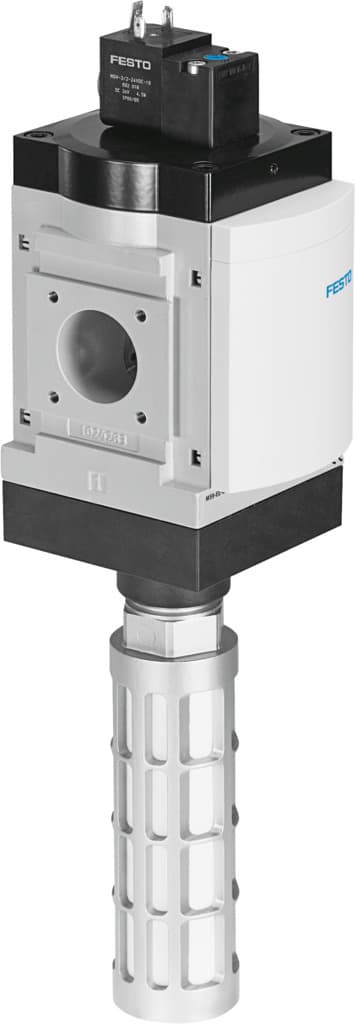

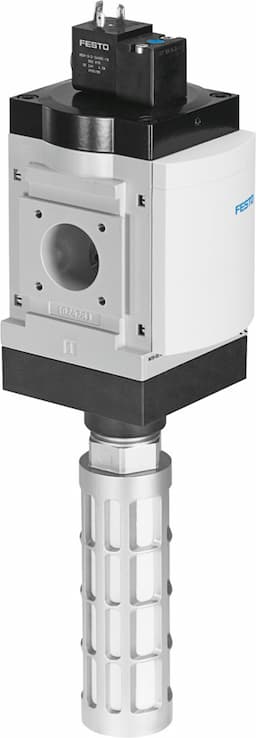

ms9-ee-g-v24-s-vs
Selling Points
- 1The MS9-EE-G-V24-S-VS is an electrically actuated on/off valve, ensuring precise control with minimal effort.
- 2Equipped with a soft sealing principle for reliable operation and reduced wear.
- 3Capable of handling up to 18,000 liters per minute, making it suitable for high-demand applications.
- 4Comes with a built-in silencer to minimize noise during operation.
- 5Features a mechanical spring reset for easy manual override and reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 9 |
Width dimension | 90mm | Structural design | Piston gate valve |
Actuation type | Electrical | Sealing principle | Soft |
Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00991008 | Valve function | 3/2, closed, monostable |
Operating pressure | 3.5bar 16bar | Lap | Overlap |
Standard nominal flow rate | 18000l/min | Standard nominal flow rate 2-3 | 14100l/min |
Duty cycle | 100% | Coil characteristics | 24 V DC: 4.5 W |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
Noise level | 93dB(A) | Degree of protection | IP65 |
Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Any | Product weight | 2300g |
Pneumatic connection 3 | G1 | Electrical connection | Form A Plug as per DIN EN 175301-803 Rectangular design |
Piston slide material | POM | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 562940 |
Specifications may be subject to change without notice
