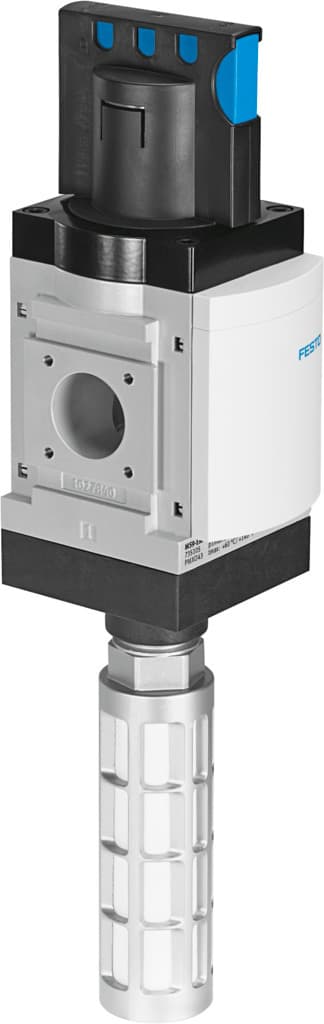

Product Model
ms9-em
Selling Points
- 1Manual Actuation: Easy to operate with a rotary knob and detent.
- 2Soft Exhaust-Air Function: Reduces noise and ensures smooth operation.
- 32/2 Double Solenoid Valve: Provides precise control over compressed air flow.
- 4Robust Construction: Made from die-cast aluminum housing and NBR seals.
- 5ATEX and CE Certified: Meets international safety standards for hazardous environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 9 |
Width dimension | 90mm | Structural design | Piston gate valve |
Actuation type | Manual | Sealing principle | Soft |
Exhaust air function | Without flow control option | Actuator lock | Rotary knob with detent |
Reset method | Forced guidance | Type of control | Direct |
Valve function | 2/2 bistable 3/2, bistable | Pressure gauge | G1/4 prepared G1/8 prepared Red-green scale with pressure sensor with pressure gauge with switch indicator |
Operating pressure | 0bar 20bar | Lap | Overlap |
Standard nominal flow rate | 8000l/min 18000l/min | Standard nominal flow rate 2-3 | 13201l/min 14900l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Certification | c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
ATEX category gas | II 2G | ATEX category for dust | II 2D |
Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
Explosive ambient temperature | -10°C <= Ta <= +60°C | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Any | Piston slide material | POM |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 562178 |
Specifications may be subject to change without notice
