Product Model

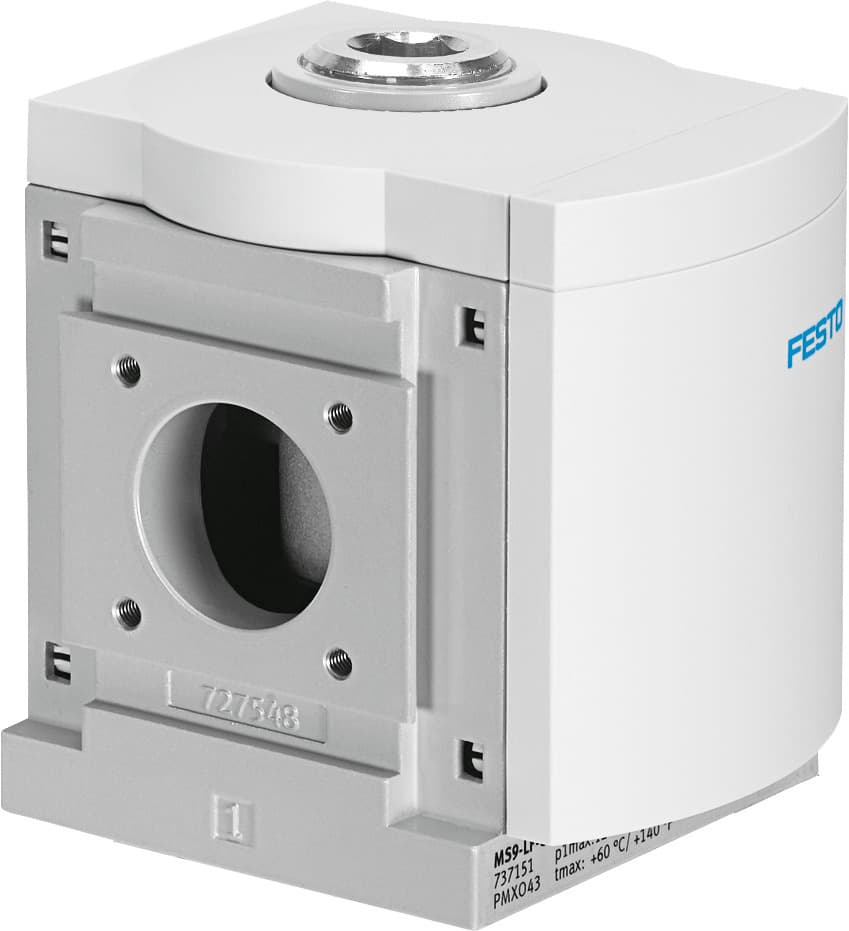

ms9-frm-ng-vs
Selling Points
- 1Efficient Compressed Air Management: Ideal for branching pneumatic systems with high flow rates up to 50,000 L/min.
- 2Robust Construction: Made from die-cast aluminum housing with PA-reinforced cover for durability.
- 3Moderate Corrosion Resistance: Classified as CRC 2, suitable for applications with moderate corrosion stress.
- 4Versatile Mounting Options: Front panel, in-line installation, and accessories available for flexible mounting.
- 5Compliant with Industry Standards: Meets ISO 8573-1:2010 and RoHS compliance for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 9 | Series | MS |
Mounting position | Any | Structural design | Branching module |
Symbol | 00991510 | Operating pressure | 0bar 20bar |
Operating voltage range AC | 0V 250V | DC operating voltage range | 0V 125V |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 1000g |
Type of mounting | Optionally: Front panel mounting Line installation With accessories | Pneumatic connection 3 | 1 NPT |
Pneumatic connection 4 | 1 NPT | Covering material | PA-reinforced |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Material of mounting bracket | Die-cast aluminum | Housing material | Die-cast aluminum |
Module connector material | Die-cast aluminum | Manufacturer ID | 564148 |
Specifications may be subject to change without notice
