Product Model

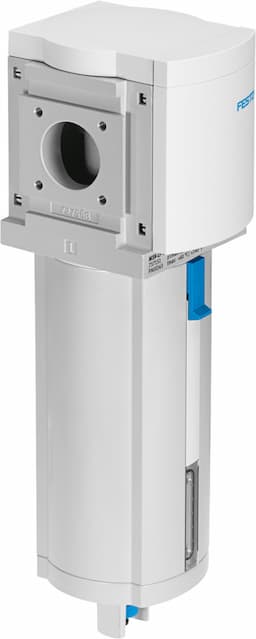

ms9-lf-g-euv
Selling Points
- 1High-Quality Filtration: 40µm grade of filtration ensures clean compressed air.
- 2Fully Automatic Condensate Drain: Efficiently manages condensate for continuous operation.
- 3Robust Design: Sintered filter with centrifugal separator for high condensate separation efficiency.
- 4Versatile Mounting Options: Vertical +/- 5° mounting position and in-line installation type.
- 5Compliance and Safety: Meets ISO 8573-1:2010 standards and has moderate corrosion resistance class (CRC) 2.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 9 | Series | MS |
Mounting position | Vertical +/- 5° | Grade of filtration | 40μm |
Condensate drain | Fully automatic | Structural design | Sinter filter with centrifugal separator |
Degree of condensate separation | 75% | Symbol | 00991520 |
Operating pressure | 2bar 12bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | 5°C 60°C | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Pore size | 40μm | Product weight | 2000g |
Type of mounting | Optionally: Line installation With accessories | Covering material | PA-reinforced |
Material of spin disc | POM | Material of filter support | POM |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Material of mounting bracket | Die-cast aluminum | Compressed air filter material | PE |
Housing material | Die-cast aluminum | Module connector material | Die-cast aluminum |
Material of bowl | Wrought aluminum alloy | Shell sealing material | NBR |
Inspection window material | PA | Separating disc material | POM |
Manufacturer ID | 564107 |
Specifications may be subject to change without notice
