Product Model

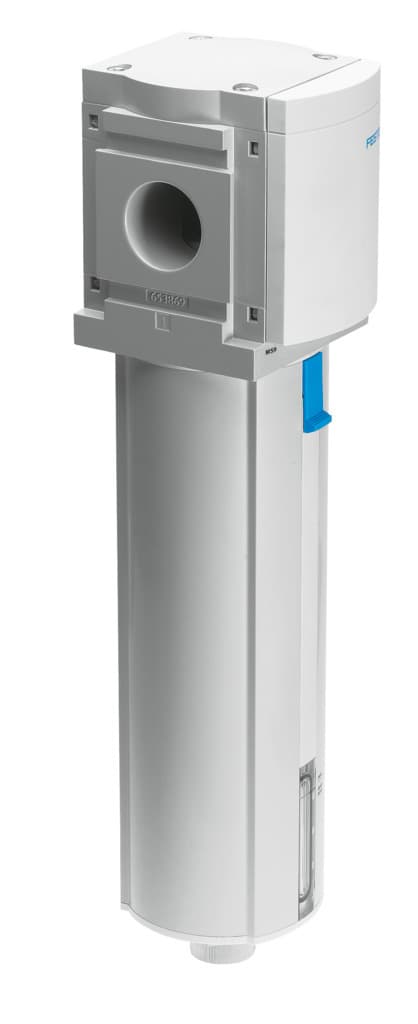

ms9-lfm
Selling Points
- 1The Festo MS9-LFM micro filter offers a filtration grade of 0.01 µm, ensuring exceptionally clean compressed air with a filter efficiency of 99.9999%.
- 2Equipped with a manually rotating condensate drain, this filter allows for easy maintenance and efficient handling of condensate.
- 3The MS9-LFM operates within a temperature range of -10 °C to 60 °C and supports supply pressures from 0 to 20 bar, making it versatile for various industrial applications.
- 4Featuring a corrosion resistance class of CRC 2, this filter is designed to withstand moderate corrosion stress, ensuring durability in harsh environments.
- 5The Festo MS9-LFM conforms to ISO 8573-1:2010 standards for air purity, ensuring high-quality compressed air in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 9 |
Structural design | Fiber filter | Grade of filtration | 0.01μm 1μm |
Condensate drain | Fully automatic Manual, non-detenting Manually rotating Semi-automatic | Operating pressure | 0bar 20bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] | Max. condensate volume | 225ml |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Differential pressure display | Visual display | Certification | c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
ATEX category gas | II 2G | ATEX category for dust | II 2D |
Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
Explosive ambient temperature | +5°C <= Ta <= +60°C | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Vertical +/- 5° | Pneumatic connection 1 | Battery module G1/2 G3/4 G1 G1 1/4 G1 1/2 1/2 NPT 3/4 NPT 1 NPT 1 1/4 NPT 1 1/2 NPT |
Pneumatic connection 2 | Battery module G1/2 G3/4 G1 G1 1/4 G1 1/2 1/2 NPT 3/4 NPT 1 NPT 1 1/4 NPT 1 1/2 NPT | Manufacturer ID | 552940 |
Specifications may be subject to change without notice
