Product Model

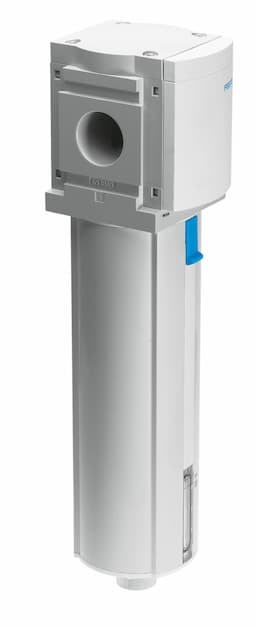

ms9-lfm-3/4-auv-hf
Selling Points
- 1The MS9-LFM-3/4-AUV-HF offers a high flow rate, ensuring efficient air filtration in industrial settings. It can handle up to 6,500 l/min, making it suitable for demanding applications.
- 2This filter features a fully-automatic condensate drain, which eliminates the need for manual intervention. The condensate drain is electrically actuated for added convenience.
- 3Equipped with a differential pressure indicator, the MS9-LFM-3/4-AUV-HF allows for real-time monitoring of filter performance. This ensures optimal filtration and alerts when maintenance is required.
- 4The filter has a filtration grade of 0.01 μm, providing extremely fine filtration to remove even the smallest particles from compressed air. This ensures clean and reliable operation in various industrial processes.
- 5The MS9-LFM-3/4-AUV-HF can be installed via accessories, offering flexibility in mounting options. It supports in-line installation and can be easily integrated into existing pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 9 |
Structural design | Fiber filter | Grade of filtration | 0.01μm |
Condensate drain | Fully automatic Manual, non-detenting | Symbol | 00991520 |
Operating pressure | 2bar 12bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
Air quality class at the output | Compressed air as per ISO?8573-1:2010 [3:4:2] | Max. standard flow rate for air quality class | 7800l/min |
Min. standard flow rate for air quality class | 390l/min | Filter efficiency | 99.9999% |
Max. condensate volume | 225ml | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 5°C 60°C |
Ambient temperature | 5°C 60°C | Storage temperature | -10°C 60°C |
Filter efficiency, fine particles | 99.995% | MPPS | 0.1μm |
MPPS filter efficiency | 99.968% | Residual oil content | 0.01mg/m3 |
Filter efficiency, oil aerosol | 99% | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Vertical +/- 5° | Pneumatic connection 1 | G3/4 |
Pneumatic connection 2 | G3/4 | Housing material | Die-cast aluminum |
Covering material | PA | Compressed air filter material | Borosilicate fiber |
Material of bowl | Wrought aluminum alloy | Inspection window material | PA |
Seals material | NBR | Product weight | 2500g |
Manufacturer ID | 552966 |
Specifications may be subject to change without notice
