Product Model

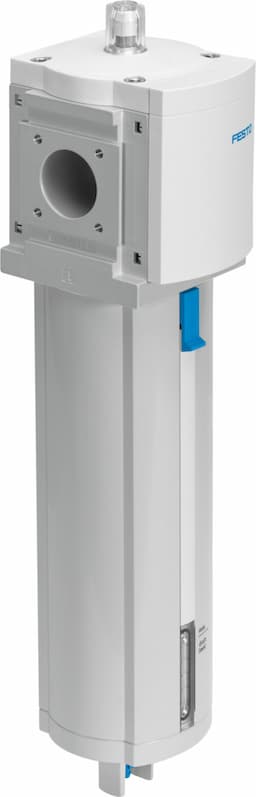

ms9-lfm-3/4-bum-hf-da
Selling Points
- 1The MS9-LFM-3/4-BUM-HF-DA features a 0.01 µm filtration grade, ensuring 99.9999% efficiency in removing fine particles from compressed air.
- 2This filter offers manual, semi-automatic, and fully automatic condensate drain options, allowing for flexible installation and maintenance.
- 3The filter operates within a temperature range of -10 °C to +60 °C and a supply pressure of 0 to 20 bar, making it suitable for various industrial applications.
- 4With a standard flow rate ranging from 325 to 10,000 l/min, the MS9-LFM-3/4-BUM-HF-DA ensures high-performance air flow for clean compressed air.
- 5The filter meets DIN ISO 8573-1 standards for air quality, ensuring it meets the stringent requirements of industrial processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 9 |
Structural design | Fiber filter | Grade of filtration | 1μm |
Condensate drain | Manually rotating | Symbol | 00991543 |
Operating pressure | 0bar 20bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
Air quality class at the output | Compressed air as per ISO?8573-1:2010 [5:4:3] | Max. standard flow rate for air quality class | 10000l/min |
Min. standard flow rate for air quality class | 500l/min | Filter efficiency | 99.99% |
Max. condensate volume | 225ml | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Storage temperature | -10°C 60°C |
Filter efficiency, fine particles | 99% | Residual oil content | 0.5mg/m3 |
Filter efficiency, oil aerosol | 90% | Differential pressure display | Visual display |
Explosive ambient temperature | -10°C <= Ta <= +60°C | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Vertical +/- 5° | Pneumatic connection 1 | G3/4 |
Pneumatic connection 2 | G3/4 | Housing material | Die-cast aluminum |
Covering material | PA | Compressed air filter material | Borosilicate fiber |
Material of bowl | Wrought aluminum alloy | Inspection window material | PA |
Seals material | NBR | Product weight | 2500g |
Manufacturer ID | 552976 |
Specifications may be subject to change without notice
