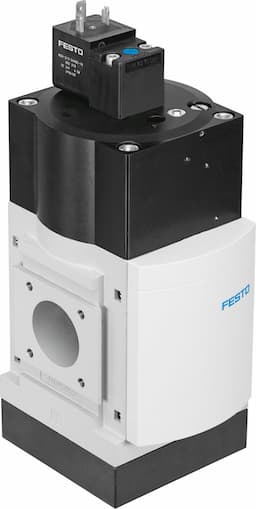

Product Model
ms9-sv-g-c-v24-s-vs
Selling Points
- 1High flow rate: 8300 l/min to 16550 l/min.
- 2Safety function: Exhausting up to category 1, performance level c.
- 3Soft-start function: Gradual pressurization for smooth system operation.
- 4Compact design: Grid dimension 90 mm, suitable for restricted spaces.
- 5Robust construction: Made from die-cast aluminum housing and brass piston slide.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 9 |
Width dimension | 90mm | Safety function | Exhausting |
Performance Level (PL) | Exhaust/up to category 1, performance level c | Structural design | Piston gate valve |
Actuation type | Electrical | Sealing principle | Soft |
Exhaust air function | Without flow control option | Manual override | None |
Reset method | Mechanical spring | Type of control | Pilot-controlled |

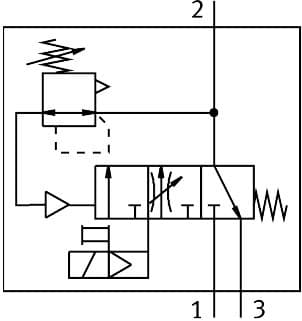

Symbol | 00995240 | Valve function | 3/2, closed, monostable Pressure build-up function |
Operating pressure | 3.5bar 16bar | Standard nominal flow rate | 8300l/min 16550l/min |
Standard flow rate exhaust 6-> 0 bar | 19730l/min 21720l/min | Duty cycle | 100% |
Coil characteristics | 24 V DC: 8.4 W | Nominal operating voltage DC | 24V |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Noise level | 93dB(A) | Degree of protection | IP65 |
Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
Storage temperature | 0°C 60°C | Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Any | Product weight | 3200g |
Pressure gauge connection | G1/8 G1/4 | Pneumatic connection 3 | G1 1 NPT |
Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Housing material | Die-cast aluminum |
Seals material | NBR | Piston slide material | Brass |
Cover material | Wrought aluminum alloy | Lower cover material | PA |
Manufacturer ID | 570737 |
Specifications may be subject to change without notice
