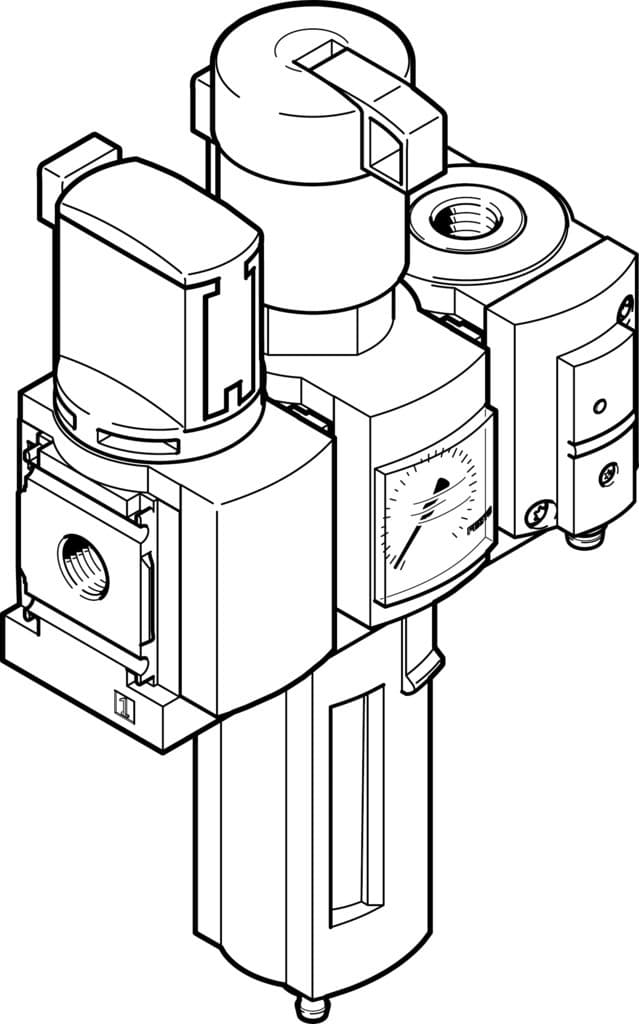

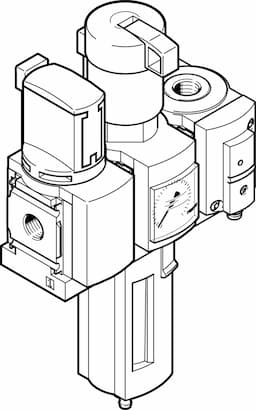

Festo MSB4-1/4:C3:J120:F12-WP Air Preparation Unit

Festo msb4-1/4:c3:j120:f12-wp

Selling Points

140 μm filtration ensures clean compressed air.
2Constant output pressure with primary and secondary pressure compensation.
3Made from die-cast aluminum with a plastic bowl guard for long-lasting performance.
4Manual rotary actuator lock and pressure gauge for easy monitoring.
5Suitable for various industrial applications, including food industry use with proper lubrication.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	4	Series	MS
Actuator lock	Rotary knob with detent can be closed with accessories	Mounting position	Vertical +/- 5°
Grade of filtration	40μm	Condensate drain	Manually rotating
Structural design	Branching module Shut off valve Filter regulator with pressure gauge	Controller function	Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function
Bowl guard	Plastic bowl guard	Symbol	00991758
Pressure gauge	with pressure gauge	Operating pressure	0.8bar 14bar
Pressure regulation range	0.5bar 7bar	Standard nominal flow rate	1750l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-10°C 60°C	For use in the food industry	See supplementary material information
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [7:4:4]	Temperature of medium	0°C 50°C
Ambient temperature	0°C 50°C	Product weight	1500g
Type of mounting	With accessories	Pneumatic connection 1	G1/4
Pneumatic connection 2	G?	Pneumatic connection 3	G1/4
Housing material	Die-cast aluminum	Material of bowl	PC
Manufacturer ID	8042667

Specifications may be subject to change without notice
