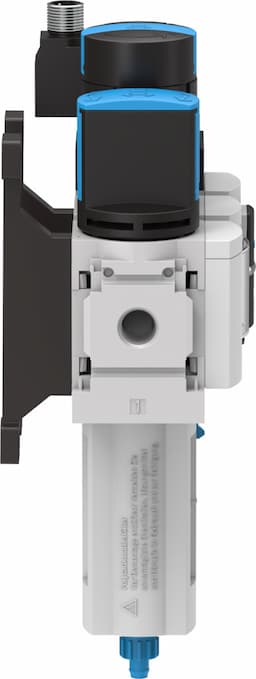

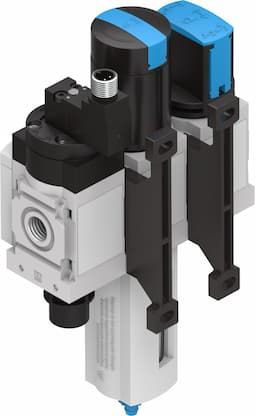

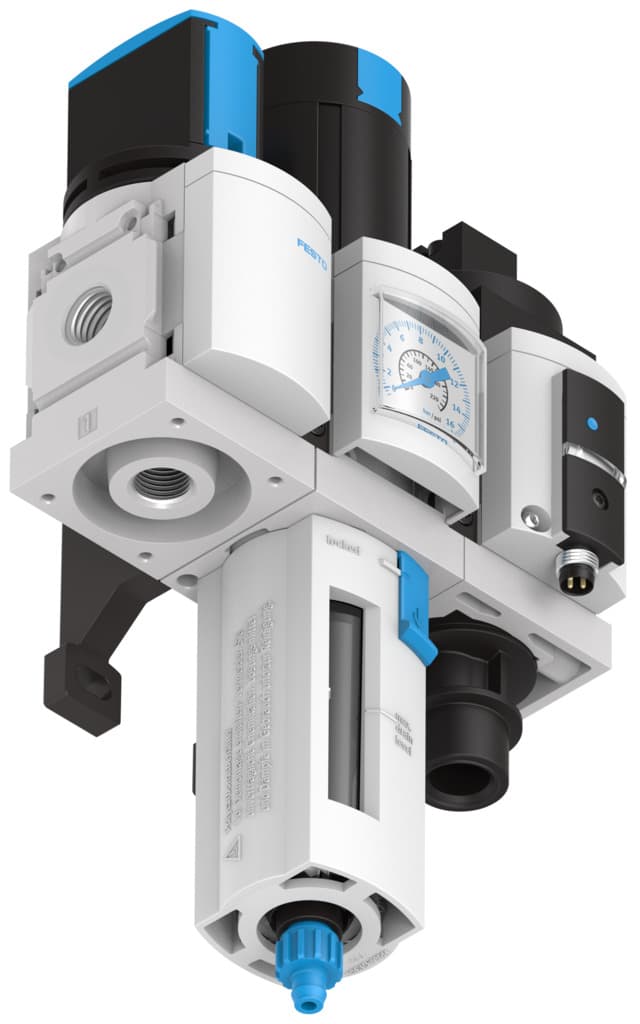

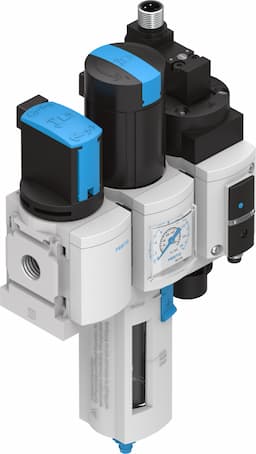

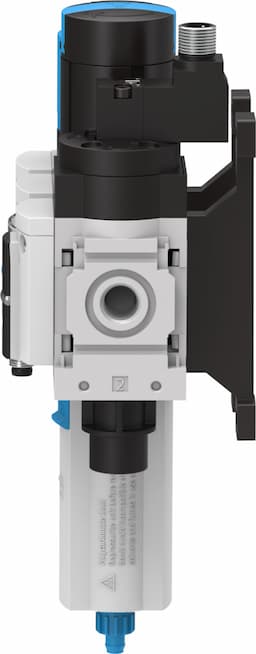

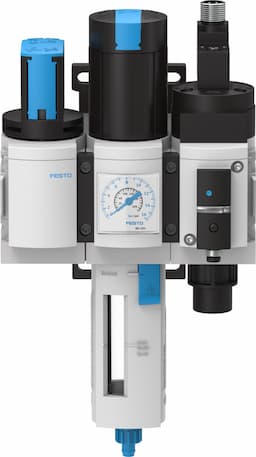

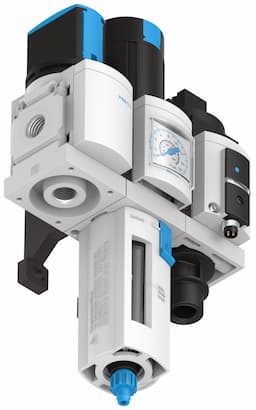

Product Model
msb4-1/4:c3:j1:d14-wp
Selling Points
- 1High-Pressure Capability: Operates at 0.8 to 14 bar, ensuring reliable performance in various applications.
- 2Advanced Filtration: Equipped with a 40 µm filter for clean compressed air, meeting ISO8573-1:2010 standards.
- 3User-Friendly Design: Features a rotary knob with lock for easy actuator control and manual condensate drain for efficient maintenance.
- 4Versatile Mounting Options: Can be mounted vertically with ±5° flexibility, accommodating different installation needs.
- 5Pre-Assembled Modules: Reduces purchasing costs and increases process reliability, saving up to 50% on time and money.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Soft start valve Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00995364 |
Pressure gauge | with pressure gauge | Operating pressure | 4bar 14bar |
Pressure regulation range | 4bar 10bar | Standard nominal flow rate | 1400l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | Product weight | 1600g |
Type of mounting | With accessories | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
Housing material | Die-cast aluminum | Material of bowl | PC |
Manufacturer ID | 8025358 |
Specifications may be subject to change without notice
