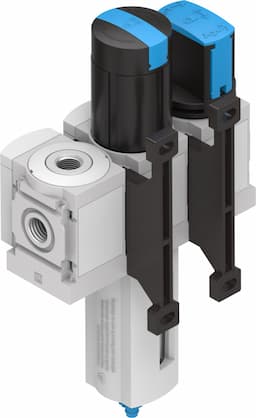

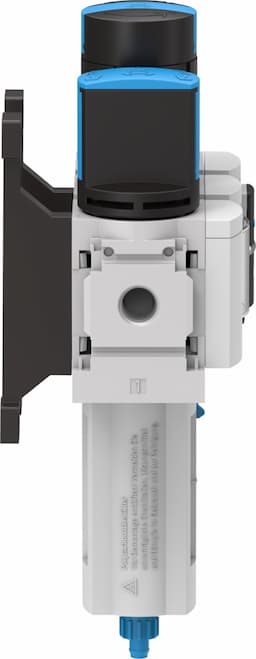

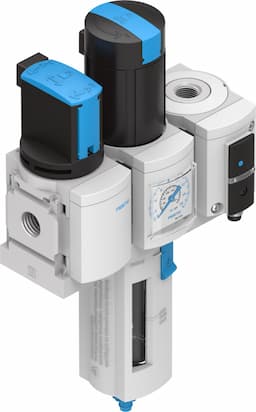

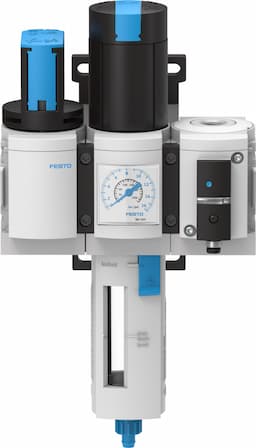

Product Model
msb4-1/4:c3:j1:f12-wp
Selling Points
- 1Versatile Air Preparation: Designed for use with MS series service units, ensuring efficient air preparation.
- 2Robust Construction: Built with an aluminium die-cast housing and plastic bowl guard for durability.
- 3Precise Pressure Regulation: Offers a pressure regulation range of 0.5 to 10 bar and an operating pressure of 0.8 to 14 bar.
- 4Easy Maintenance: Equipped with a manual rotary condensate drain for easy maintenance.
- 5High Flow Rate: Standard nominal flow rate of 1,600 l/min for efficient air supply.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Branching module Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00991758 |
Pressure gauge | with pressure gauge | Operating pressure | 0.8bar 14bar |
Pressure regulation range | 0.5bar 10bar | Standard nominal flow rate | 1600l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | Product weight | 1500g |
Type of mounting | With accessories | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
Housing material | Die-cast aluminum | Material of bowl | PC |
Manufacturer ID | 8025356 |
Specifications may be subject to change without notice
