Product Model
msb4n-1/4:c3j2d7a1f3-wp
Selling Points
- 1The Festo MSB4N-1/4:C3J2D7A1F3-WP service unit combination offers a rotary knob with integrated lock, ensuring secure actuator operation and easy handling.
- 2This unit is designed for vertical mounting with a +/-5° angle tolerance, providing flexibility in installation and space optimization.
- 3Equipped with a fully automatic condensate drain, the MSB4N-1/4:C3J2D7A1F3-WP maintains high air quality and reduces maintenance needs.
- 4The service unit features a filter regulator with a pressure gauge, ensuring precise pressure regulation and monitoring within the range of 4.5 to 12 bar.
- 5Compatible with compressed air to ISO 8573-1:2010 [7:4:4], this unit supports lubricated operation and maintains moderate corrosion resistance, making it suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Fully automatic |
Structural design | Branching module Shut off valve Filter regulator with pressure gauge Standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |

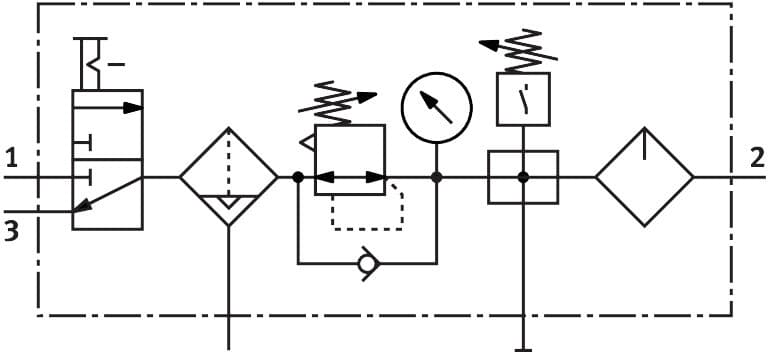

Bowl guard | Plastic bowl guard | Symbol | 00991598 |
Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 10bar |
Pressure regulation range | 4bar 9bar | Standard nominal flow rate | 750l/min |
Coil characteristics | 24 V DC: 1.8 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Temperature of medium | -10°C 50°C | Ambient temperature | -10°C 50°C |
Product weight | 2200g | Type of mounting | With accessories |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | G1/4 1/4 NPT | Housing material | Die-cast aluminum |
Material of bowl | PC | Manufacturer ID | 550485 |
Specifications may be subject to change without notice
