Product Model
msb4n-1/4:c3j4d7a1f3-wp
Selling Points
- 1The Festo MSB4N-1/4:C3J4D7A1F3-WP service unit combination offers a rotary knob with integrated lock for secure actuator operation, ensuring reliable performance in various mounting positions.
- 2This unit features a fully automatic condensate drain and a filter regulator with pressure gauge, providing efficient air preparation and precise pressure control.
- 3With a standard nominal flow rate of 750 l/min and operating pressure range of 4.5 to 12 bar, the MSB4N-1/4:C3J4D7A1F3-WP is ideal for high-pressure pneumatic applications.
- 4The unit supports lubricated operation and has a corrosion resistance class of CRC 2, making it suitable for applications with moderate corrosion stress.
- 5The MSB4N-1/4:C3J4D7A1F3-WP service unit combination is designed to meet ISO 8573-1:2010 air purity standards, ensuring high-quality compressed air for your automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 5μm | Condensate drain | Fully automatic |

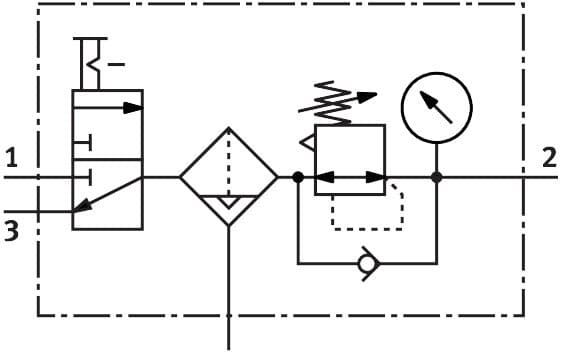

Structural design | Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00991756 |
Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 10bar |
Pressure regulation range | 4bar 9bar | Standard nominal flow rate | 700l/min |
Coil characteristics | 24 V DC: 1.8 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] |
Temperature of medium | -10°C 50°C | Ambient temperature | -10°C 50°C |
Product weight | 2200g | Type of mounting | With accessories |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | G1/4 1/4 NPT | Housing material | Die-cast aluminum |
Material of bowl | PC | Manufacturer ID | 550489 |
Specifications may be subject to change without notice
